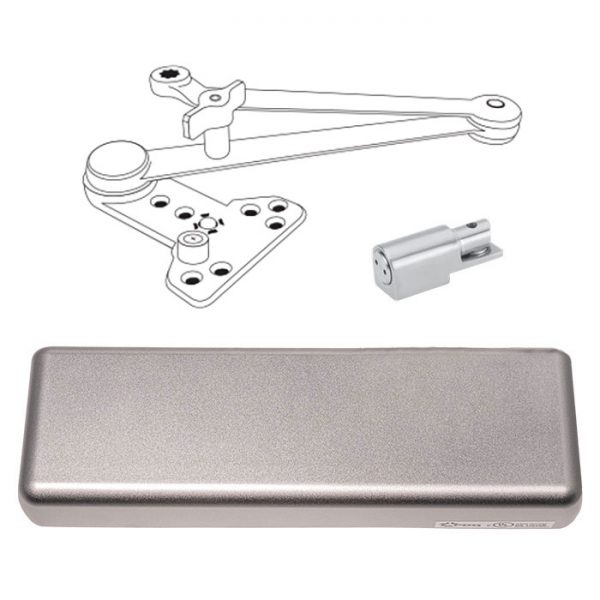

PDQ 7101 BC SCSHO Door Closer with Spring Cushion Stop Hold Open Arm

Usually Ships: 2-3 Business Days
  • Heavy Duty, BHMA/ANSI Grade-1 certified
  • Includes hold open arm with cushion spring stop
  • Parallel arm mount only

Available Options:

Product Overview

PDQ 7101 BC SCSHO Extra Heavy Duty Grade-1 Institutional Door Closer, Hold Open Arm with Spring Stop

The 7100 Series is PDQ’s top of line heavy duty closer. It is designed for high use, high abuse institutional applications such as K-12, higher education and government buildings. 7100 Series closers are ideal for retrofit and new construction applications where strength and durability are required.

The parallel stop arm mount is an enhanced version of the parallel arm application. It is similar to the parallel arm mount but incorporates a heavy duty rigid arm and soffit plate with limiting dead stop. The dead stop feature is field handed. The closer’s backcheck function should be adjusted to cushion the impact of the stop. The parallel stop arm is intended for use where an auxiliary stop cannot be utilized.

  • Parallel arm installation
  • Includes spring cushion stop hold open arm
  • Mounting hole pattern retrofits LCN® 4040
  • High strength cast iron body
  • Forged steel main arm
  • Full plastic cover standard
  • Certified to ANSI/BHMA A156.4 Grade 1
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
  • TAA compliant. Country of origin: KR
Brand

Finishes

689 Aluminum (Powder Coated), 693 Black (Powder Coated), 695 Dark Bronze (Powder Coated), 696 Brass (Powder Coated)
Templating (Hole Pattern)

2-1/4" x 5"
Usage

Heavy Duty
ANSI/BHMA Standard

Certified to ANSI/BHMA A156.4 Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

Non-Rated with Hold Open Arm
Body Construction

Cast Iron Body
Spring Size

Adjustable Spring Size 1-6
Cover

Full Cover
Handing

Non-Handed
Mounting Options

Parallel Arm (Push Side)
Door Application

Hollow Metal, Wood or Aluminum
Warranty

25 Year Limited
