PDQ 7101 BC EDA Door Closer with Extra Duty Arm

Usually Ships: 2-3 Business Days

Heavy Duty, BHMA/ANSI Grade-1 certified
Includes extra duty arm
Parallel arm mount only

Available Options:

Finish

Clear

Quantity:

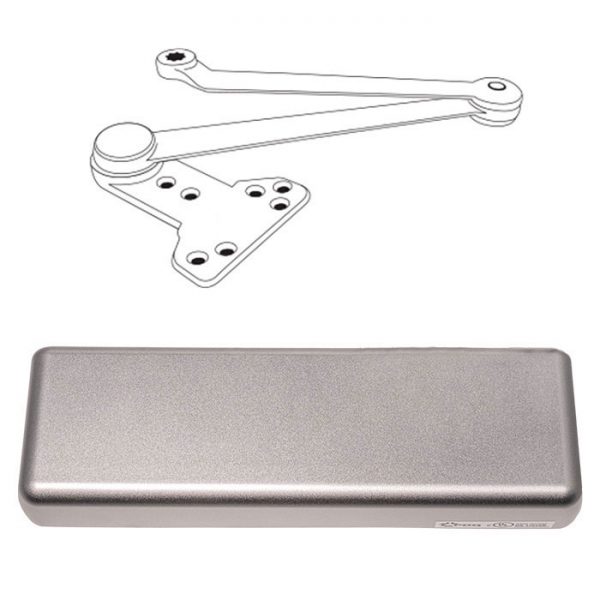

PDQ 7101 BC DS Extra Heavy Duty Grade-1 Institutional Door Closer, Extra Duty Arm

The 7100 Series is PDQ’s top of line heavy duty closer. It is designed for high use, high abuse institutional applications such as K-12, higher education and government buildings. 7100 Series closers are ideal for retrofit and new construction applications where strength and durability are required.

The parallel stop arm mount is an enhanced version of the parallel arm application. It is similar to the parallel arm mount but incorporates a heavy-duty rigid arm and soffit plate.

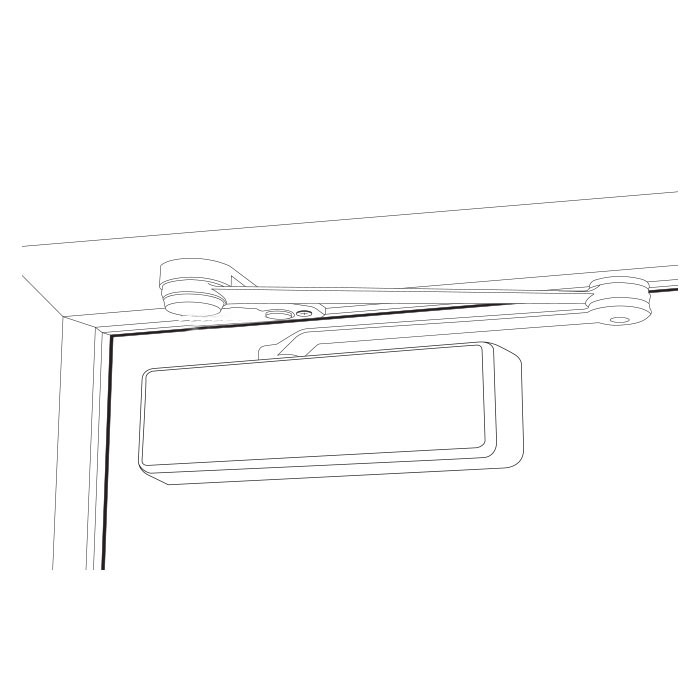

Parallel arm installation
Includes extra duty arm
Mounting hole pattern retrofits LCN® 4040
High strength cast iron body
Forged steel main arm
Full plastic cover standard
UL listed 3-hour fire door
Certified to ANSI/BHMA A156.4 Grade 1
Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
TAA compliant. Country of origin: KR

Brand	PDQ
Finishes	689 Aluminum (Powder Coated), 693 Black (Powder Coated), 695 Dark Bronze (Powder Coated), 696 Brass (Powder Coated)
Templating (Hole Pattern)	2-1/4" x 5"
Usage	Heavy Duty
ANSI/BHMA Standard	Certified to ANSI/BHMA A156.4 Grade 1
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Fire Rating	UL Listed
Body Construction	Cast Iron Body
Spring Size	Adjustable Spring Size 1-6
Cover	Full Cover
Handing	Non-Handed
Mounting Options	Parallel Arm (Push Side)
Door Application	Hollow Metal, Wood or Aluminum
Warranty	25 Year Limited
