Product Overview

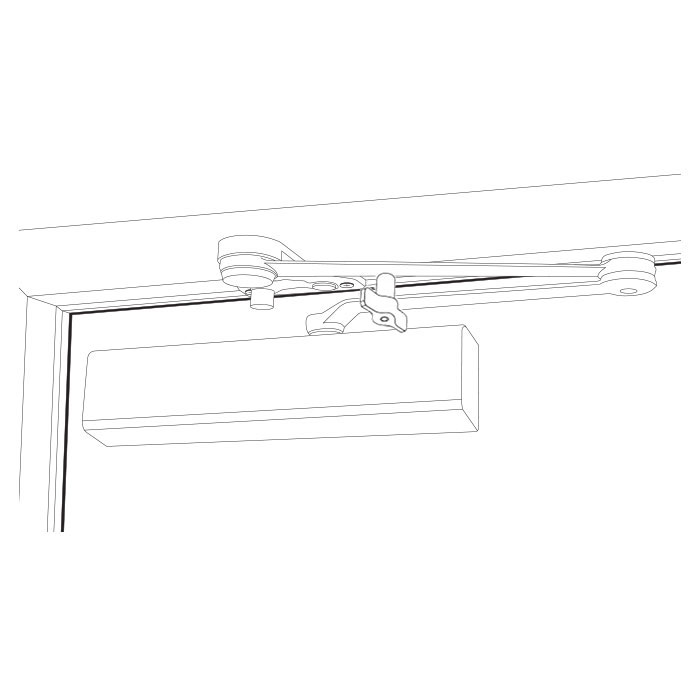

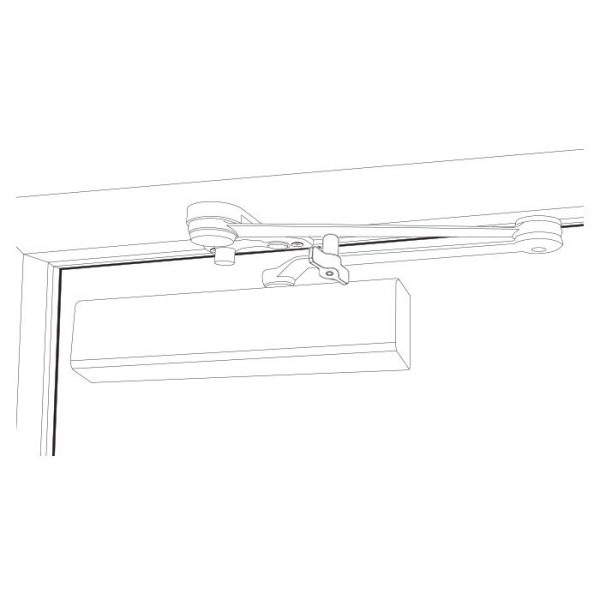

PDQ 5101 BC DSHO Heavy Duty Grade-1 Institutional Door Closer, Door Saver Hold Open Arm
The parallel stop arm mount is an enhanced version of the parallel arm application. It is similar to the parallel arm mount but incorporates a heavy duty rigid arm and soffit plate with limiting dead stop. The dead stop feature is field handed. The closer’s backcheck function should be adjusted to cushion the impact of the stop. The parallel stop arm is intended for use where an auxiliary stop cannot be utilized.
- Parallel arm installation
- Includes Door Saver arm with hold open
- Forged steel main arm
- Full plastic cover standard
- Certified to ANSI/BHMA A156.4 Grade 1
- Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
- TAA compliant. Country of origin: KR
| Brand | |
|---|---|
| Finishes | 689 Aluminum (Powder Coated), 693 Black (Powder Coated), 695 Dark Bronze (Powder Coated), 696 Brass (Powder Coated) |
| Templating (Hole Pattern) | 3/4" x 11-1/8" |
| Usage | Heavy Duty |
| ANSI/BHMA Standard | Certified to ANSI/BHMA A156.4 Grade 1 |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Fire Rating | Non-Rated with Hold Open Arm |
| Body Construction | Cast Aluminum Body |
| Spring Size | Adjustable Spring Size 1-6 |
| Cover | Full Cover |
| Handing | Non-Handed |
| Mounting Options | Parallel Arm (Push Side) |
| Door Application | Hollow Metal, Wood or Aluminum |
| Warranty | 25 Year Limited |
