PDQ 5101 BC DS Door Closer with Door Saver Stop Arm

Usually Ships: 2-3 Business Days
  • Heavy Duty, BHMA/ANSI Grade-1 certified
  • Includes Door Saver arm with dead stop
  • Parallel arm mount only

Available Options:

Product Overview

PDQ 5101 BC DS Heavy Duty Grade-1 Institutional Door Closer, Door Saver Deadstop Arm

The 5100 heavy-duty door closer from PDQ is the perfect solution for high-traffic areas in a commercial building. Built from a high-strength cast aluminum body, this door closer is designed for durability and performance.

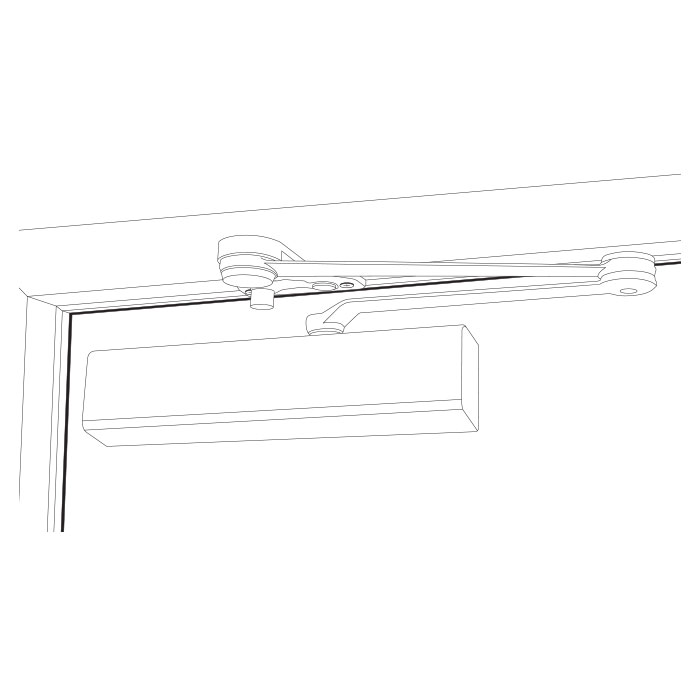

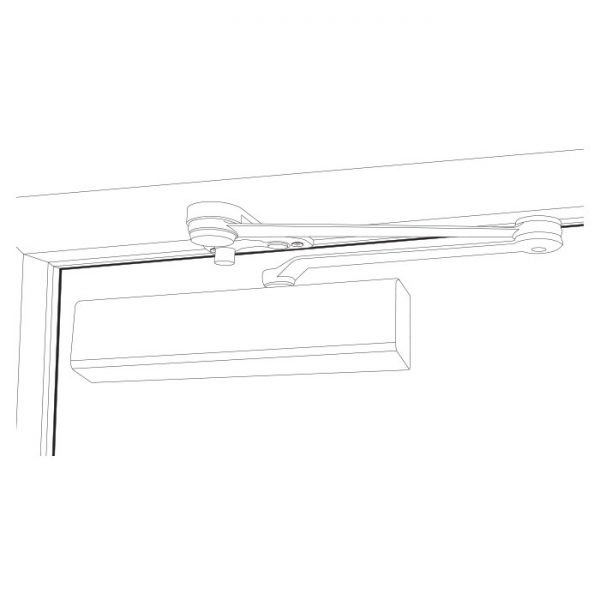

The parallel stop arm mount is an enhanced version of the parallel arm application. It is similar to the parallel arm mount but incorporates a heavy-duty rigid arm and soffit plate with limiting dead stop. The dead stop feature is field handed. The closer’s backcheck function should be adjusted to cushion the impact of the stop. The parallel stop arm is intended for use where an auxiliary stop cannot be utilized.

  • Parallel arm installation
  • Includes door saver arm with deadstop
  • High-Strength Cast Aluminum Body
  • Forged steel main arm
  • Full plastic cover standard
  • UL listed 3-hour fire door
  • Certified to ANSI/BHMA A156.4 Grade 1
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
  • TAA compliant. Country of origin: KR

codes

Brand

Finishes

689 Aluminum (Powder Coated), 693 Black (Powder Coated), 695 Dark Bronze (Powder Coated), 696 Brass (Powder Coated)
Templating (Hole Pattern)

3/4" x 11-1/8"
Usage

Heavy Duty
ANSI/BHMA Standard

Certified to ANSI/BHMA A156.4 Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL Listed
Body Construction

Cast Aluminum Body
Spring Size

Adjustable Spring Size 1-6
Cover

Full Cover
Handing

Non-Handed
Mounting Options

Parallel Arm (Push Side)
Door Application

Hollow Metal, Wood or Aluminum
Warranty

25 Year Limited
