NGP (National Guard) 335N Full Mortise Automatic Door Bottom

Usually Ships: 3-5 Business Days
  • 3/4″ max drop
  • Mortise required in bottom of door
  • Fire-rated, air infiltration and sound tested

Available Options:

Clear

Product Overview

National Guard Products (NGP) 335N Mill Aluminum Mortise Automatic Door Bottom with Neoprene Seal

  • Aluminum alloy 6063, T5 temper
  • Synthetic rubber polymer blend: PVC, Nitrile rubber (NBR), and Chloroprene closed cell advanced elastomeric foam
  • Very good abrasion resistance, tensile strength and memory
  • Flame resistant
  • Moisture resistant
  • Temperature range -20°F to 200°F
  • Good resistance to ozone, sunlight and aging
  • Use with a threshold for maximum sealing capability
  • Nylon brush recommended for carpet applications where no threshold is provided
  • Specify exact net length required to avoid field sizing
  • 36″ and longer may be cut up to 4″ in the field. Under 36″ should not be cut in the field, order net length
  • 36″ and longer are furnished 1/2″ shorter than ordered to fit within net door size. (i.e. 36″ is furnished 35-1/2″)
  • Available 23-1/4″ net to 48″ in length
  • End caps furnished standard
  • Fits wood fire door mortise restrictions

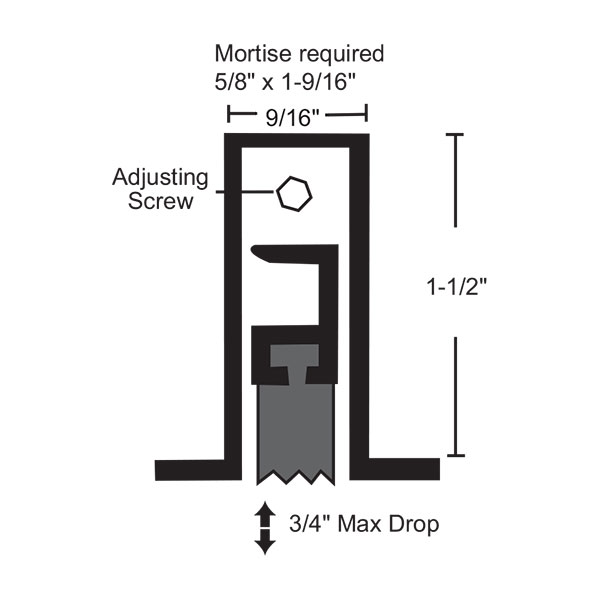

  • Mortise required 5/8″ x 1-9/16″
  • 3/4″ max drop
  • Neoprene is black
  • Mill aluminum
Brand

Length

36", 48"
Finishes

Mill Finish Aluminum
Fire Rating

Fire Rated – UL10C – Positive Pressure
