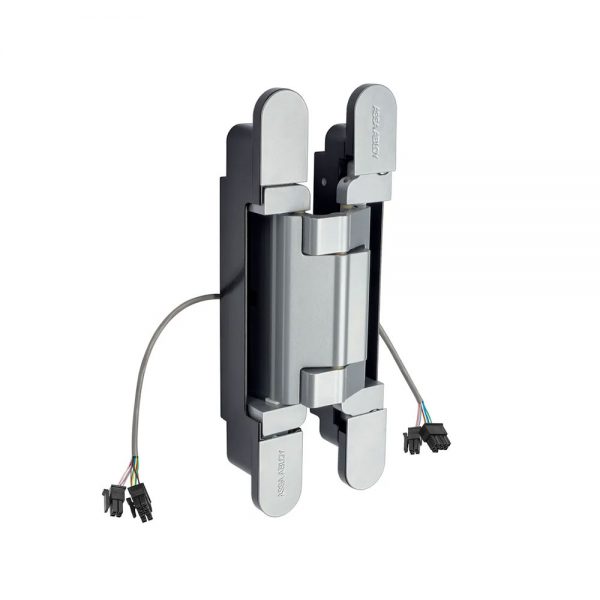

McKinney MK200ME ElectroLynx “QC” Quick Connect 3D Adjustable Concealed Invisible Electrified Hinge

McKinney MK200ME ElectroLynx “QC” Quick Connect 3D Adjustable Concealed Invisible Electrified Hinge

The MK200 and MK200ME are concealed hinges for wood or hollow metal doors with a 1-3/4″ minimum thickness, are non-handed and include magnetic covers. MK200ME is corrosion-resistant. MK200ME is electrified, allowing for a constant flow of current from a power source through the hinge to electrified door hardware, including locks, strikes, and exit devices.

Features

• For use on wood or hollow metal doors that are a minimum 1-3/4″ thick
• Magnetic covers included
• 260mm (10.24″) hinge length, 32mm (1.26″) hinge width
• Can hold doors up to 609 lbs.
• 3-dimensional adjustability, 180° opening angle
• Base Materials: Hinge body – zinc alloy, Hinge arms – aluminum, Hinge covers – steel
• ANSI/BHMA A156.1 Triple Weight Testing Accomplished
• Cataphoresis coating provides a durable and corrosion-resistant surface

Benefits

• Easy installation and door alteration
• Keeps door clean and minimal
• No visible exposure on the outside of the opening
• Magnetic covers conceal screws for a clean aesthetic
• Prevents tampering, increases security
• Greater hinge capacity than all other McKinney concealed hinge models
• Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that leads or snaps together, resistant to tampering as there are no external wires, improve the overall look of the access door (MK200ME)

Cross Reference: Tectus 640 3D Energy, Soss 220PT
