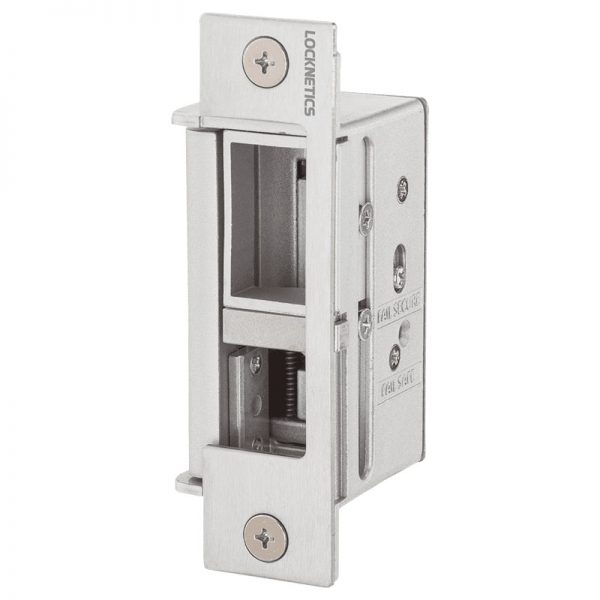

Locknetics MDS100 Electric Strike for Cylindrical Locks and Mortise Locks

Usually Ships: 1-2 Business Days
  • For use with cylindrical locks and mortise locks
  • Field selectable 12/24 VDC
  • Installs in metal, aluminum, or wood frames

Available Options:

Clear

Locknetics MDS100 Electric Strike for Heavy Duty Mortise Locksets and Cylindrical Locksets, Field selectable 12/24 VDC, Field Selectable Fail-Safe/Fail-Secure, Five Faceplates Included, Satin Stainless Steel

The MDS100 Series electric strike is designed for use with heavy-duty mortise lock sets and cylindrical lock sets. Five different face plates included for optional flexibility of installation in wood or metal frames.

  • Heavy-duty design with vertical adjustments for flexibility
  • Field selectable fail-safe and fail-secure (fail-secure default), with simple and easy screw reversal on non-fire-rated models
  • Included trim piece for installation flexibility and improved appearance
  • Mounting tabs included for aluminum frame installation on non-fire rated doors in non-fire rated applications

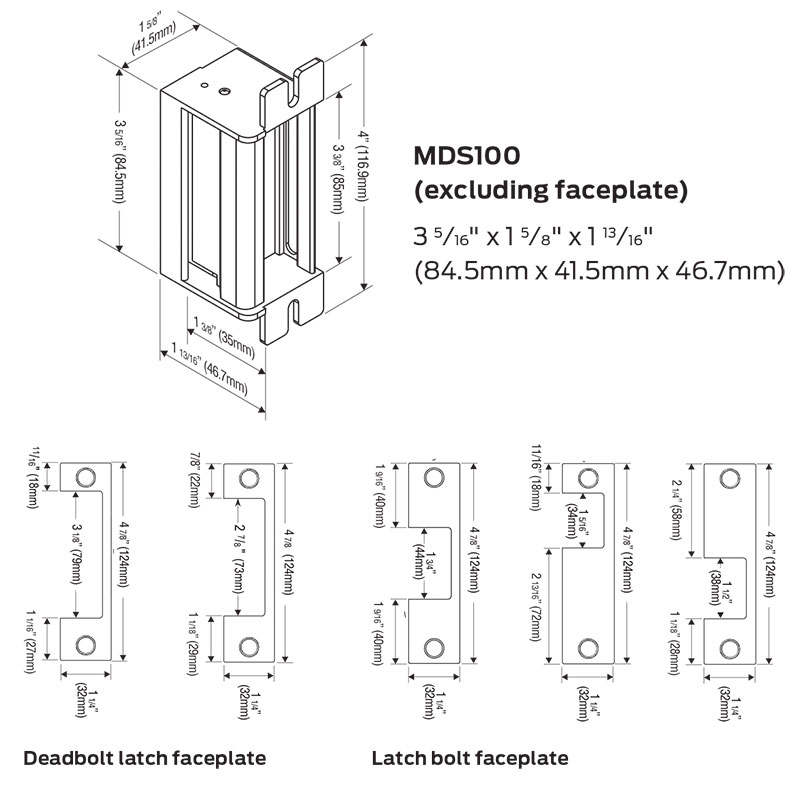

  • Five stainless steel face plates included for optional flexibility (4-7/8″ x 1-1/4″ with differing cutouts)
  • Field selectable 12/24 VDC
  • Dual-voltage 12 VDC @ .3A/24 VDC @ .15A
  • Built-in voltage spike suppressor included
  • UL1034 burglary-resistant electric locking mechanisms, listed
  • UL294 (indoor), listed
  • Static strength of 1500 lb. static load, UL certified
  • Dynamic strength of 70ft.-lb. dynamic load, UL certified
  • UL10C Fire rated, listed – MDS100-F models only
  • 250,000 cycles endurance, UL certified

Options:

  • Fire rating
  • Latch bolt monitoring available
Brand

Finishes

630 Satin Stainless Steel

Model

MDS100, MDS100-F (Fire-Rated)

Fire Rating

UL10C Fire rated, listed – MDS100-F models only

Electrical

Field selectable 12/24 VDC, Dual-voltage 12 VDC @ .3A/24 VDC @ .15A

Usage

Heavy Duty

Lock Type Compatibility

Cylindrical Lock, Mortise Lock

Part Type

Complete Electric Strike
