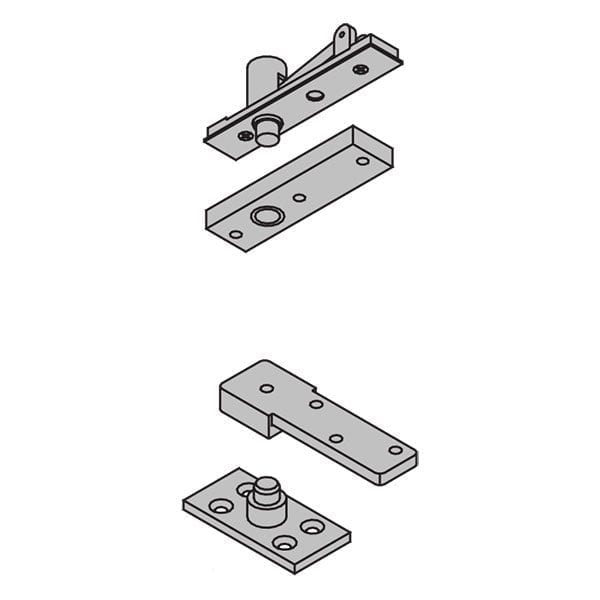

Ives 7255 Center Hung Pivot Set

$340.83

This item ships FREE! Usually Ships: 1-2 Business Days
  • For Doors up to 500 lbs.
  • Door Sizes up to 4’0″ x 8’0″
  • Non-Handed Design

Product Overview

  • 626 Satin Chrome Finish
  • Maximum door load 500 poundsƒƒ
  • Recommended for use with 1-3/4″ minimum door thickness
  • Not recommended for doors larger than 4’0″ X 8’0
  • Easy installation, tilt on bearing and bearing pin
  • Adjustable floor to door clearance 3/16″ to 3/4″
  • Vertical adjustment range 3/16″, with positive locking
  • Made from cast brass
  • UL Listed, 20 minute fire doors
  • 7255 Set (7255 Top and 7255 Btm)
Brand

Finishes

626 Satin Chrome
Hand

Non-handed
Door Weight

up to 500 lbs.
Usage

Standard Duty
Pivot Type

Center Hung Pivots
ANSI/BHMA Standard

Meets ANSI/BHMA A156.4 C07032
Fire Rating

UL Listed, 20 minute fire doors
