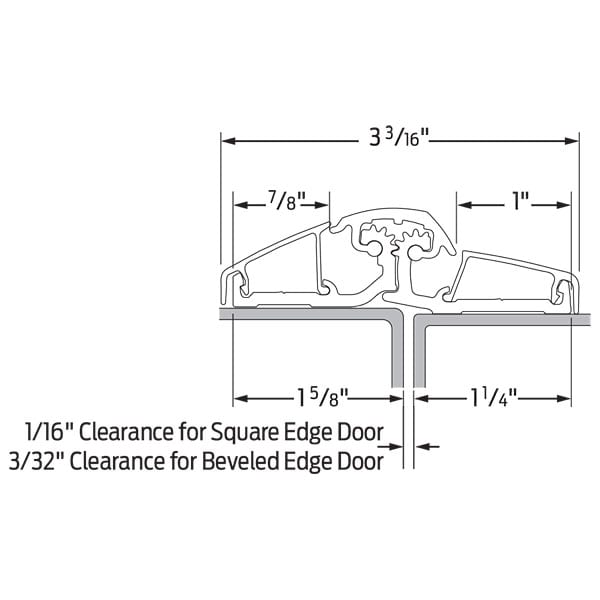

Ives 157XY Heavy Duty Adjustable Full Surface Continuous Hinge

Usually Ships: 20-30 Business Days
  • Easy-to-install, heavy-duty, full surface continuous hinge
  • XY (lateral and vertical) adjustability while hanging the door
  • For doors weighing up to 550 lbs

Available Options:
Clear

Product Overview

The Ives 157XY is a heavy-duty, easy-to-install full surface continuous hinge that can be used on standard hollow metal, minimum reveal, narrow-faced frames, and narrow stile aluminum doors in aftermarket or new construction applications. The 157XY is the only hinge that allows all lateral and vertical clearances to be adjusted after the hinge is secured to the door and frame, reducing installation time to a fraction of what is required with any other hinge. The 157XY makes door repair work faster and enables more efficient maintenance through the life of the opening.

  • For 1-3/4″ thick doors
  • Full surface, center pivot aluminum geared continuous hinge
  • Tamper-resistant interlocking leaves
  • 1/16″ Door inset
  • Beveled or square edge doors
  • For doors weighing up to 550 pounds
  • Compatible with hollow metal, minimum reveal, narrow-faced frames, and narrow stile doors
  • The contour of the hinge cover gives the door and frame a clean, aesthetic look
Brand

Finishes

313AN Anodized Dark Bronze, 711 Black Anodized Aluminum, US28 (628) Anodized Aluminum
Length

83" (for 7'0" door), 95" (for 8'0" door)
Continuous Hinge Type

Full Surface
ANSI/BHMA Standard

Meets ANSI 156.26
Usage

Heavy Duty
Fire Rating

UL Listed – Tested and approved UL 10C
