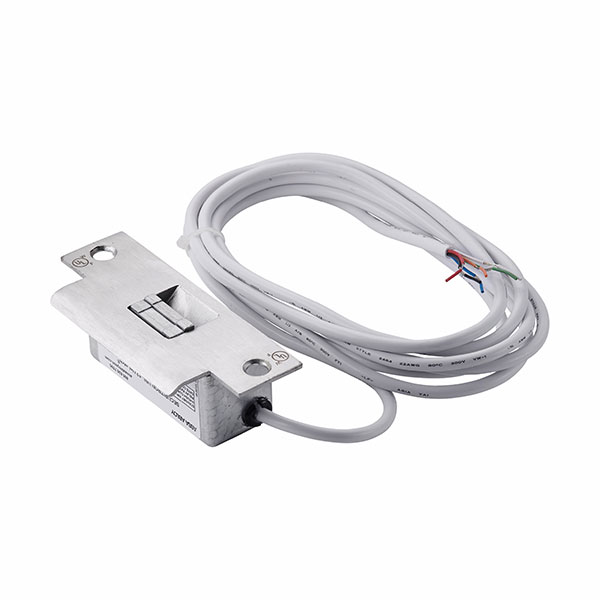

HES UNL Series Unlatch Motorized Electric Strike for Cylindrical/Tubular Locks

HES UNL Series UnLatch Strike

The universal compact, no cut strike for use with cylindrical locksets.

UnLatch is for any application where an electric strike would be used for a cylindrical/tubular lockset. UnLatch supports full deadlatch function, releases under pressure and includes a latch status monitoring output.

The HES/Securitron UnLatch eliminates the necessity to perform a routing operation on the door frame for installation. The motor driven Securitron UnLatch also presents a fully concealed appearance on the door which not only enhances the architectural appeal of the installation but improves security over a conventional electric strike as an intruder is less able to determine the type of security device present on the door. The Securitron UnLatch functions with cylindrical dead latches or springlatches and includes a latch status output which reports when the door is in latched (secure) condition or is open.

• No cutting or altering of the jamb required
• Accommodates up to 5/8″ latchbolt
• Fits standard ANSI 4-7/8″ strike cutout
• Motorized, no solenoids
• Fully concealed installation
• Maintains deadlatch function at all times
• Continuous duty
• Releases under preload
• Latch status sensor is standard (SPDT)
• UL Listed
