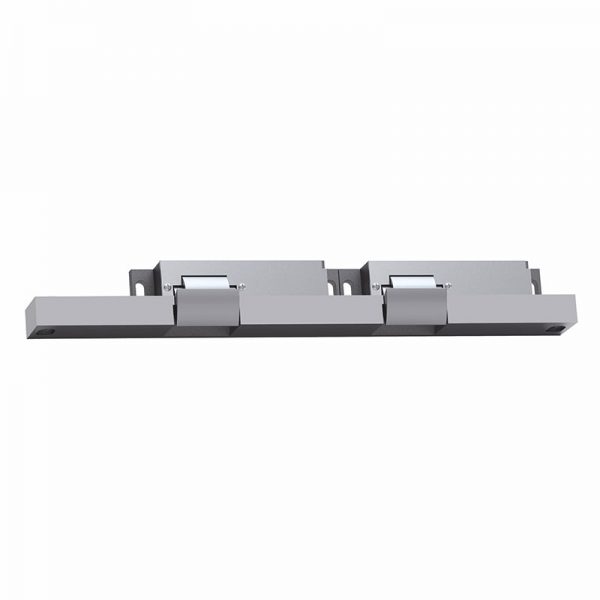

HES Folger Adam 310-4-X Heavy Duty Electric Strike for Surface Vertical Rod Exit Devices

HES Folger Adam 310-4-X Heavy-Duty Electric Strike for Double Doors with Surface Vertical Rod Exit Devices, 630 Satin Stainless Steel

The 310-4-X vertical surface-mounted series is designed for heavy-duty applications on double doors

The 310-4-X vertical surface-mounted series is designed for heavy-duty applications on double doors. The all stainless steel construction of this device makes it ideal for high-abuse applications.

• 630 satin stainless steel finish
• Tamper-resistant, heavy-duty construction
• Constructed entirely of stainless steel for strength and corrosion resistance
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs
• Endurance 1,000,000 cycles
• Adjustable keeper to allow for door and frame misalignment
• Pullman keeper
• Non-handed
• Fail secure (standard)
• Plug-in connector

Models

• 310-4-1 For both leaves of a pair of doors when spacing of the vertical rod is between 4″ [101.6mm] and 4-3/4″ [120.65mm] PK keeper standard
• 310-4-2 For both leaves of a pair of doors when spacing of the vertical rods is between 4-5/8″ [111.125mm] and 5-3/8″ [136.5mm] PK keeper standard
• 310-4-3 For both leaves of a pair of doors when spacing of the vertical rods is between 5-1/4″ [133.35mm] and 6″ [152.4mm] PK keeper standard
• 310-4-30 For both leaves of a pair of doors when spacing of the vertical rods is between 2-5/8″ [66.675mm] and 3-3/8″ [85.725mm] PK keeper standard

Optional Features

• Fail-Safe
• LCBMA – Latchbolt & Locking Cam Monitor with Auxiliary Switch

Certifications / Listings

• UL 1034, burglary-resistant listed
• UL 294 listed
• ANSI/BHMA A156.31, Grade 1
• RoHS compliant

Models: 310-4-1-12D-630, 310-4-1-24D-630, 310-4-1-F-12D-630, 310-4-1-F-24D-630, 310-4-1-12D-630-LCBMA, 310-4-1-24D-630-LCBMA, 310-4-1-F-12D-630-LCBMA, 310-4-1-F-24D-630-LCBMA, 310-4-2-12D-630, 310-4-2-24D-630, 310-4-2-F-12D-630, 310-4-2-F-24D-630, 310-4-2-12D-630-LCBMA, 310-4-2-24D-630-LCBMA, 310-4-2-F-12D-630-LCBMA, 310-4-2-F-24D-630-LCBMA, 310-4-3-12D-630, 310-4-3-24D-630, 310-4-3-F-12D-630, 310-4-3-F-24D-630, 310-4-3-12D-630-LCBMA, 310-4-3-24D-630-LCBMA, 310-4-3-F-12D-630-LCBMA, 310-4-3-F-24D-630-LCBMA, 310-4-30-12D-630, 310-4-30-24D-630, 310-4-30-F-12D-630, 310-4-30-F-24D-630, 310-4-30-12D-630-LCBMA, 310-4-30-24D-630-LCBMA, 310-4-30-F-12D-630-LCBMA, 310-4-30-F-24D-630-LCBMA
