310-2-3-4OB

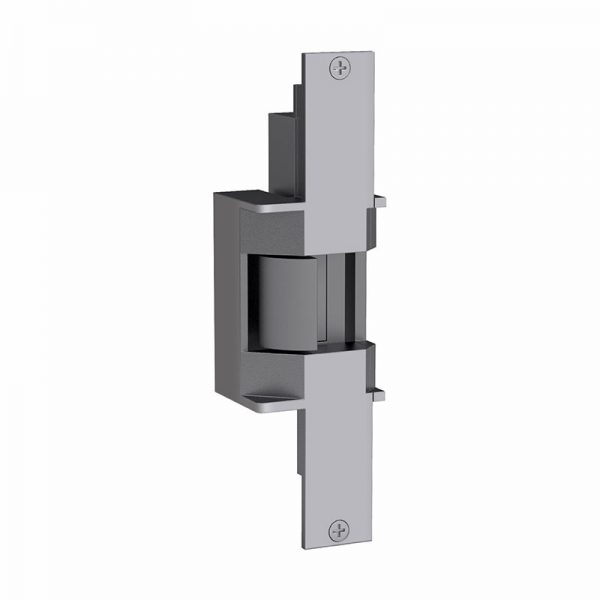

HES Folger Adam 310-2-3/4OB Heavy Duty Electric Strike for a 3/4″ Throw Latchbolt on Pair of Doors

Usually Ships: 2-3 Business Days
  • Open back for a pair of doors, without a door coordinator
  • 3/4″ keeper standard; 3/4″ throw latchbolt (without deadbolt)
  • Designed for extreme heavy-duty applications

Available Options:

Clear

Product Overview

HES Folger Adam 310-2-3/4OB Heavy-Duty Electric Strike for a 3/4″ Throw Latchbolt, 3/4″ Keeper, Open Back for Double Doors without Coordinator, Satin Stainless Steel

The industrial-grade electric strike designed for extreme heavy-duty applications.

The 310 Series is a 3-hour fire-rated, industrial-grade electric strike designed for extreme heavy-duty applications. The all stainless steel construction of this device makes it ideal for high-abuse applications that would disable other electric strikes.

  • Open Back for Double Doors without Coordinator, 3/4″ Throw Latchbolt Without Deadbolt
  • 630 satin stainless steel finish
  • Tamper-resistant, heavy-duty construction
  • Constructed entirely of stainless steel for strength and corrosion resistance
  • Static strength 1,500 lbs
  • Dynamic strength 70 ft-lbs
  • Endurance rating 1,000,000 cycles
  • Horizontally adjustable keeper allows for door and frame misalignment
  • Non-handed
  • Plug-in connector

Certifications / Listings

  • ANSI/BHMA A156.31, Grade 1
  • RoHS Compliant
  • UL 1034 burglary-resistant listed
  • UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
  • UL294 Listed

Models: 310-2-3/4OB-12D-630, 310-2-3/4OB-24D-630, 310-2-3/4OB-F-12D-630, 310-2-3/4OB-F-24D-630

Brand

Finishes

630 Satin Stainless Steel
Fail Secure / Fail Safe

Fail Secure (standard), -F Fail Safe
Voltage

12VDC, 24VDC
ANSI/BHMA Standard

ANSI/BHMA A156.31, Grade 1
Usage

Heavy Duty
Fire Rating

UL 10C fire rated, 3-hour double door (fail secure only), UL 10C fire rated, 3-hour single door (fail secure only)
Part Type

Complete Electric Strike
Lock Type Compatibility

Cylindrical Lock, Mortise Lock
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
