HES DB Faceplate Kit for 1006 Electric Strike

Usually Ships: 2-3 Business Days
  • Faceplates only, for use with 1006 Series
  • For use with cylindrical and mortise locksets with deadbolts
  • Replaces function of the N, ND, NM, H, HD, HM, HT, and HTD options

Available Options:

Clear

HES DB Kit, Faceplates Only, 1006 Series, 4-7/8″ x 1-1/4″Faceplates

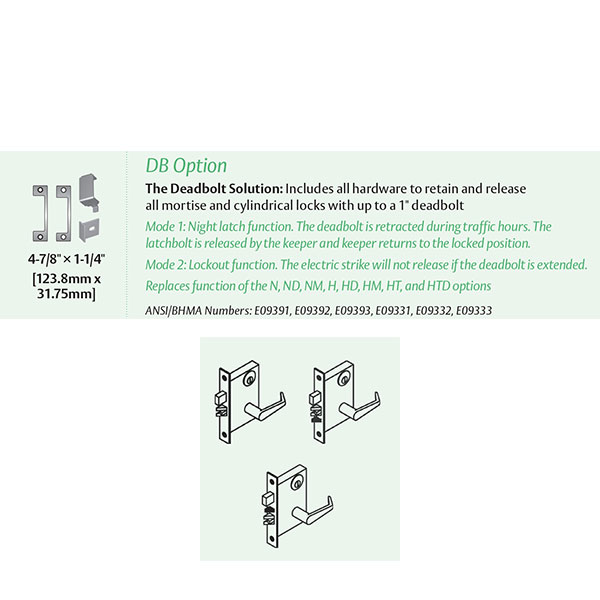

This deadbolt solution offers two modes of functionality; night latch and lockout.

  • The Deadbolt Solution: Includes all hardware to retain and release all mortise and cylindrical locks with up to a 1″ deadbolt
  • Mode 1: Night latch function. The deadbolt is retracted during traffic hours. The latchbolt is released by the keeper and keeper returns to the locked position.
  • Mode 2: Lockout function. The electric strike will not release if the deadbolt is extended. Replaces function of the N, ND, NM, H, HD, HM, HT, and HTD options
  • ANSI/BHMA Numbers: E09391, E09392, E09393, E09331, E09332, E09333
Brand

Finishes

630 Satin Stainless Steel

Faceplate

4-7/8 In. X 1-1/4 In.

Lock Type Compatibility

Cylindrical Lock, Mortise Lock with Deadbolt

Part Type

Electric Strike Faceplate

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
