Product Overview
HES 9200 Series Grade 1 Field Selectable (Safe/Secure) 12/24VDC Electric Strike for Glass Double Doors with Vertical Rods
Retro-mounted electric strike with integrated adjustability and field installable options for maximized versatility on double glass doors.
The innovative 9200 electric strike sets a new industry standard for glass openings with a tubular, vertical rod exit device. The 9200 offers simplified retro-mounted installation within the existing mechanical prep to provide fast and easy installation. Integrated adjustability provides optimal latch positioning to accommodate demanding installations and the low-profile design eliminates the need to add to or modify the frame. With adaptable voltage sensing technology, no wiring selection is required, allowing the product to function in ranges from 12 through 24 volts. Additionally, field selectable fail safe/fail secure functionality and monitoring options provide maximized versatility. The 9200 exceeds Grade 1 standards and is designed with the strength and durability to meet UL outdoor rating requirements.

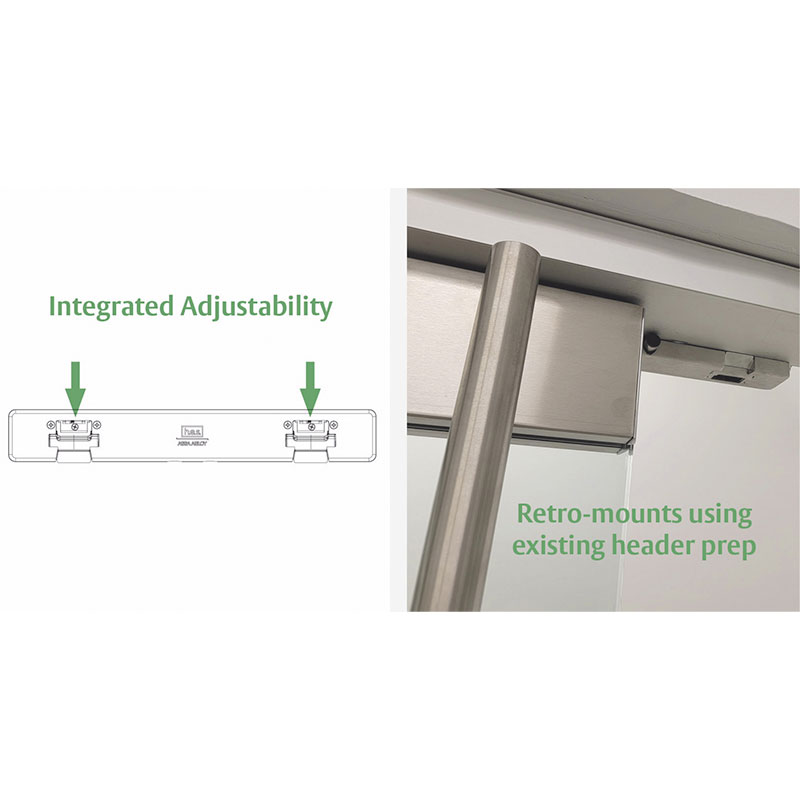

- Retro-mount using existing header prep
- No cutting required
- Integrated adjustability
- Adaptable voltage sensing technology (12-24 VDC)
- Factory configured or field installable monitoring
- Static strength 1,500 lbs
- Dynamic strength to 70 ft-lbs
- Endurance 1 million cycles
- Field selectable fail secure/fail safe
- Quiet operation
- Stainless steel construction
- HES Securicare 5 year warranty
Monitoring Options
- LM: Latchbolt Monitoring
- LMS: Latchbolt Monitoring | Latchbolt Strike Monitor
Brand | |
---|---|
Finishes | 613e Dark Oxidized Satin Bronze equivalent, 630 Satin Stainless Steel, BSP Black Suede Powder Coat |

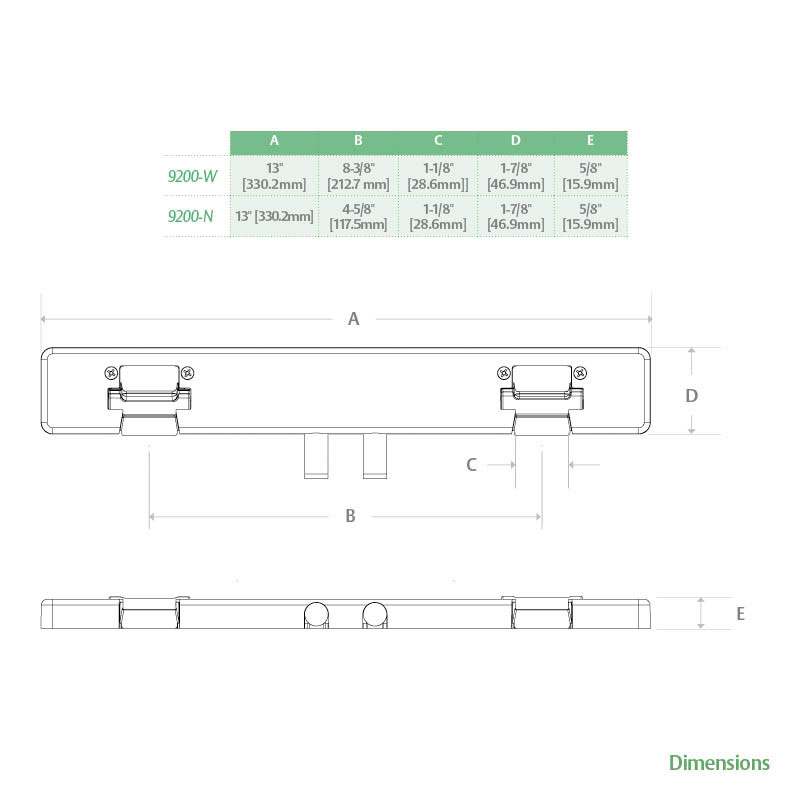

Keeper Spacing | N – 4-5/8" CTC, W – 8-3/8" CTC |
Option | LM – Latchbolt Monitoring, LMS – Latchbolt and Strike Monitoring, None – No Monitoring |
ANSI Grade | ANSI/BHMA A156.31, Grade 1 |
Usage | Standard Duty |
Fire Rating | Non-Fire-Rated |
Part Type | Complete Electric Strike |
Lock Type Compatibility | Vertical Rod Exit Device |
Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
