HES 1006CDB Complete Electric Strike for Deadbolt Locks

HES 1006CDB Electric Strike Complete Pac, 12/24VDC, Includes HM and AD Faceplates, 630 Satin Stainless Steel

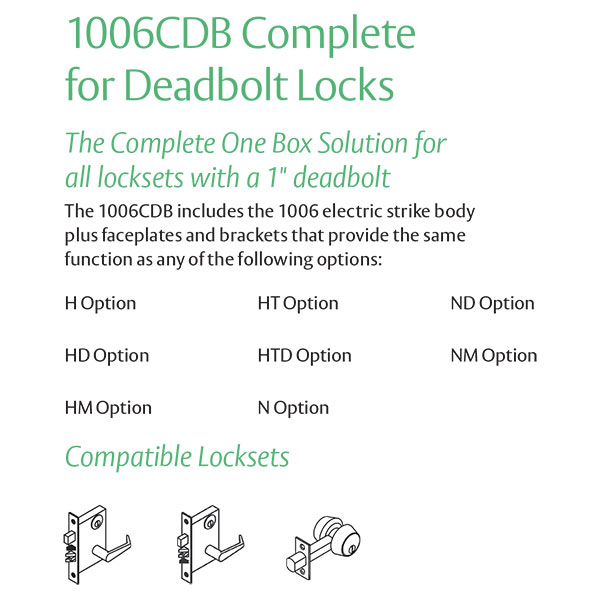

The Complete One Box Solution for all locksets with a 1″ deadbolt

The 1006CDB includes the 1006 electric strike body plus faceplates and brackets that provide the same function as any of the following options: H Option, HD Option, HM Option, HT Option, HTD Option, N Option

• 630 satin stainless steel finish
• Fail secure (standard) or Fail Safe
• Dual voltage 12 or 24VDC continuous duty

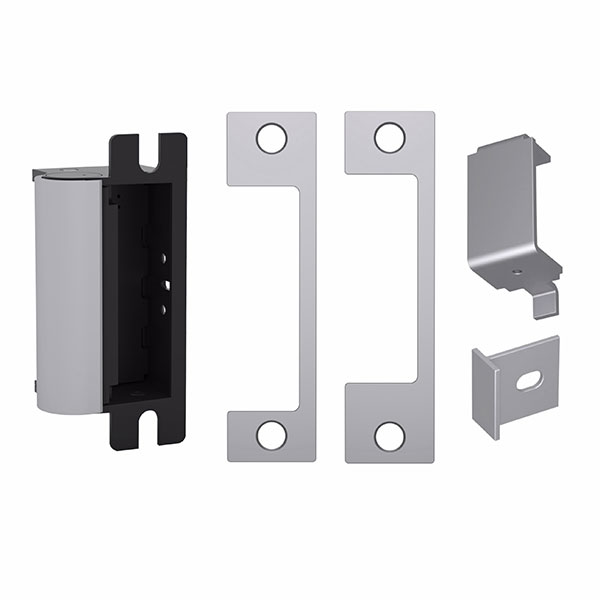

• Includes 1006 strike body, HM and AD faceplates
• Non-handed

Tested for Durability

• Endurance 1,000,000 cycles
• UL 10C fire-rated, 3 hour single door (fail secure only)
• UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
• CAN4-S104(ULC-S104) fire door conformant
• ANSI A250.13-2003 windstorm listed
• UL 1034 burglary-resistant listed and suitable for outdoor use
• UL 294 listed
• ANSI/BHMA A156.31, Grade 1
• NFPA-252 fire door conformant
• ASTM-E152 fire door conformant
• Florida Building Code approved
