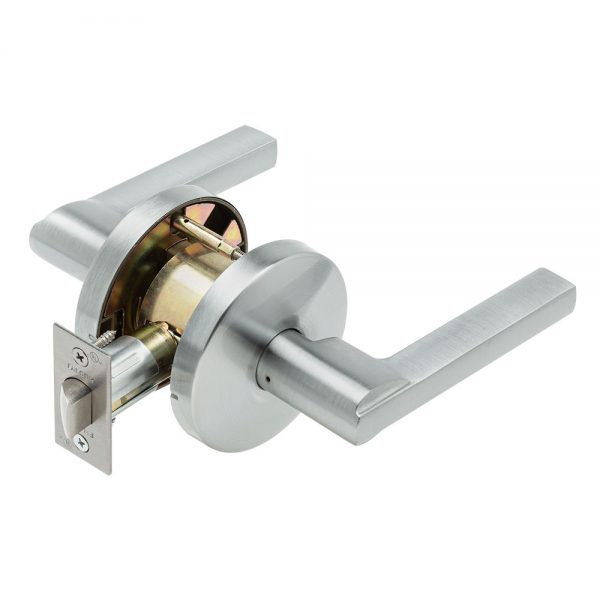

Falcon W101S LAT (LATITUDE) Passage Lever

Usually Ships: 20-30 Business Days
  • ANSI/BHMA A156.2, Grade 2 certified
  • ANSI function F75: Passage
  • ADA compliant, 3-hour fire-rated

Available Options:

Falcon W101S Grade 2 Passage Cylindrical Lock, Non-Keyed, Latitude Lever, Standard Rose

When an affordable passage lever set is needed for low to medium traffic doorways in office, government, retail, industrial or multi-family applications, the W101 fits perfectly. The Falcon W Series offers a quality product at a value price, and is backed by one of the best names in the business – Allegion.

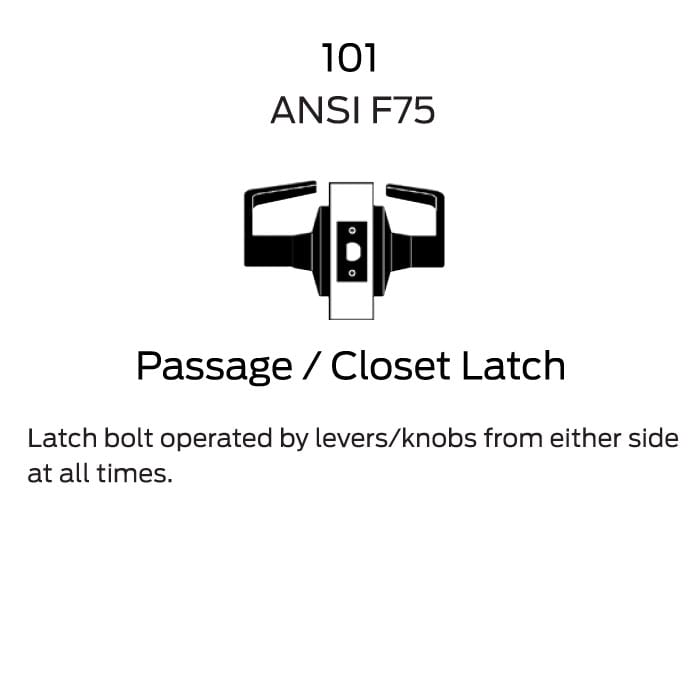

ANSI Function F75 – Keyless – Latch bolt by levers at all times.

  • Non-handed for easy field assembly
  • Heavy duty springs for better lever return and to prevent sagging
  • Manufactured to Allegion’s industry-leading quality standards

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 626 Satin Chrome, 643e Aged Bronze

Lock Function

Passage

Usage

Medium Duty

Lever Design

LAT (Latitude)

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

ANSI/BHMA Standard

Tested and certified under ANSI/BHMA A156.2, Grade 2

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"

Latch

1/2" throw – 1-1/8" x 2-1/4" face

Warranty

10 Year Limited
