Falcon SC81A DEL Rw/PA Delayed Action Door Closer

Falcon SC81A DEL RWPA, SC80A Series Grade-1 Door Closer, Regular Arm with PA Bracket, Delayed Action Cylinder

The Falcon SC80A Series provides a solid product at a solid price and is perfect for virtually all medium-duty commercial applications. The SC81A closer brings Grade-1 durability and reliability to both interior and exterior doors. An adjustable design ensures flexible installation and ADA compliance. Ideal for side doors, closets, restrooms, retail shops, restaurants, and office buildings.

CYLDEL – Delay action cylinder. Cylinder will provide consistent door control throughout the opening and closing cycle but includes an extra regulation valve that allows the door to slowly close (delay) as it begins to sends the door back to latch (approximately 70°). Independent backcheck, main speed and latch speed are field adjustable regulation valves and incorporated into the cylinder.

Rw/PA – Regular Arm with Parallel Arm Bracket. Includes adjustable forearm assembly to accommodate a variety of door types and frame conditions. Parallel Arm (PA) bracket allows closer to be installed on the ‘push’ side of the door in a parallel arm type configuration.

• Incorporates SC80A-3071 DEL cylinderƒ
• Delays closing from 120° to 70°ƒ
• Delay time adjustable up to approximately 1 minute
• Separate adjustable general speed, latch speed and backcheck
• Adjustable Sizes 1-6 – for interior doors to 5’0″ wide and exterior doors to 4’0″ wide

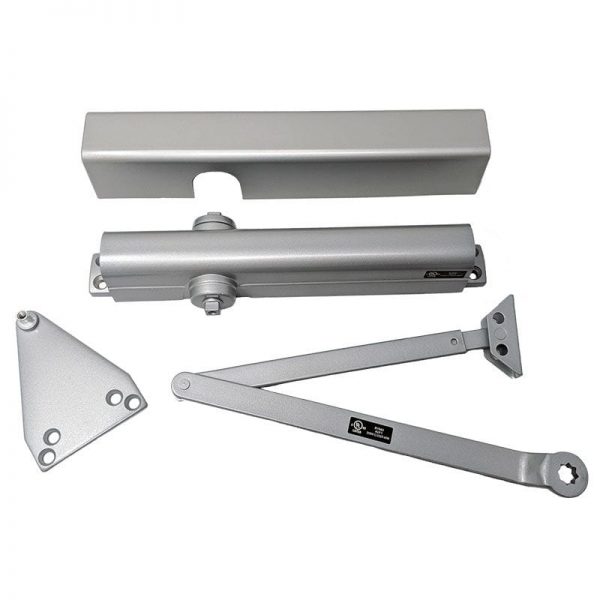

• Standard Tri-Pack includes arm and bracket for Regular Pull Side, Top Jamb or Parallel Arm Mounting
• Common 3/4″ x 12″ Mounting Hole Pattern – Retrofittable to Norton 8000
• Standard non-handed slimline cover and optional non-handed full plastic cover

Finishes:

• AL, BHMA 689 – Silver Painted (Resembles Aluminum Finish)
• DKB, BHMA 695 – Dark Bronze Painted (Spray Duranodic)

Models: SC81A-DEL-RWPA-AL, SC81A-DEL-RWPA-AL-FC, SC81A-DEL-RWPA-DKB, SC81A-DEL-RWPA-DKB-FC
