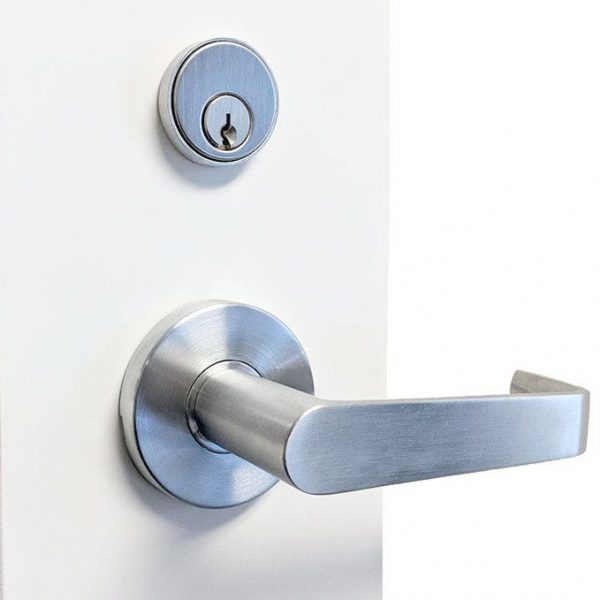

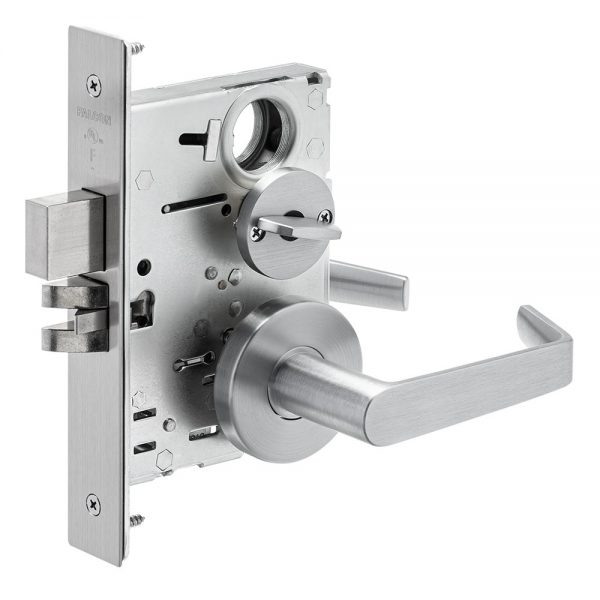

Falcon MA541 DG Entry or Office Mortise Lock, Dane Lever, Gala Rose

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI Grade-1 Certified
  • ANSI Function: F21 – Entry or Office Lock
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear

Falcon MA541 DG Entry or Office Mortise Lock, Dane Lever, Gala Rose

The MA Series is a heavy-duty, Grade 1 mortise lock that offers versatility, toughness, and dependability at an affordable price.

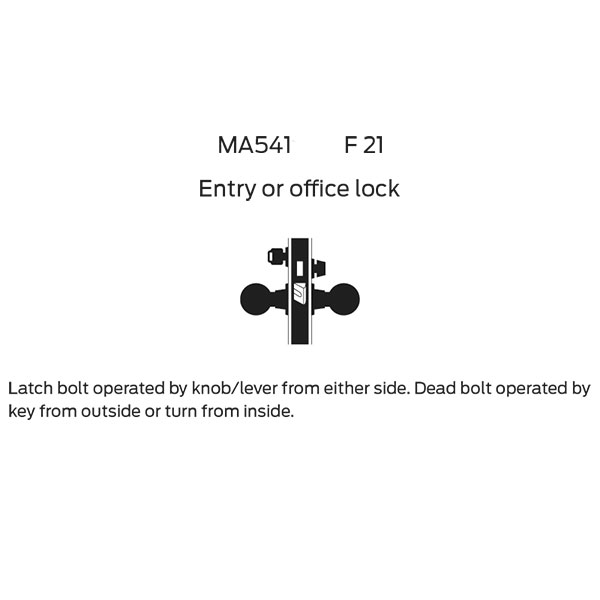

ANSI F21 – Entry or Office Lock: Latch bolt operated by knob/lever from either side. Dead bolt operated by key from outside or turn from inside.

  • UL listed and certified Operational Grade 1 and Security Grade
  • Cold-formed steel, zinc plated with dichromate for corrosion resistance
  • Ability to easily re-hand the lock in the field
  • Conventional cylinder or (SFIC) small format interchangeable core housing (less core)

Models: MA541P-DG-605, MA541CP6-DG-605, MA541B-DG-605, MA541L-DG-605, MA541P-DG-606, MA541CP6-DG-606, MA541B-DG-606, MA541L-DG-606, MA541P-DG-613, MA541CP6-DG-613, MA541B-DG-613, MA541L-DG-613, MA541P-DG-622, MA541CP6-DG-622, MA541B-DG-622, MA541L-DG-622, MA541P-DG-626, MA541CP6-DG-626, MA541B-DG-626, MA541L-DG-626, MA541P-DG-630, MA541CP6-DG-630, MA541B-DG-630, MA541L-DG-630

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 622 Matte Black, 626 Satin Chrome, 630 Satin Stainless Steel

Lock Function

Entry (Entrance), Office

Cylinder

985-6Pin Mortise Cylinder or 987 Mortise Cylinder Housing

ANSI Function

F21

Usage

Heavy Duty

ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1

Fire Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated

Handing

Right hand is standard; Reversible in the field

Backset

2-3/4"

Case

Cold formed steel, zinc dichromate plated, .090” thick

Latchbolt

Two-piece stainless steel, mechanical anti-friction bolt. 3/4" projection

Faceplate

(armored front) 1-1/4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs

Strike

Meets ANSI AII5.1 for frame preparation. Strike is non-handed

Door Thickness

1-3/4"

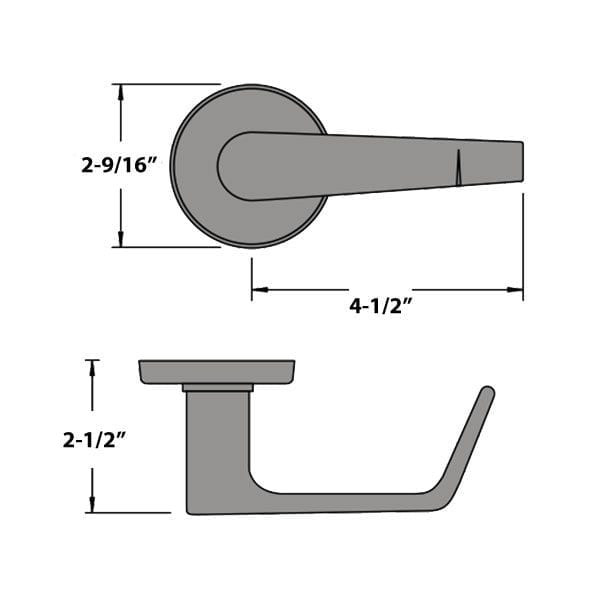

Lever Design

DG Dane Gala

Falcon_MA-Lock_Installation_Instructions Falcon_MA_Series_Service_Manual
