Falcon MA441 DG Classroom Security Mortise Lock, Dane Lever, Gala Rose

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI Grade-1 Certified
  • ANSI Function: F32 – Classroom Security
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Product Overview

Falcon MA441 DG Classroom Security Mortise Lock, Dane Lever, Gala Rose

The MA Series is a heavy-duty, Grade 1 mortise lock that offers versatility, toughness, and dependability at an affordable price.

ANSI F32 – Classroom Security: Latch bolt operated by lever from either side except when outside lever is locked from inside or outside by key. When outside ever is locked, latch bolt is retracted by key from inside or outside or by operating inside nob/lever. Auxiliary deadlatch. Inside lever always free for immediate egress.

  • UL listed and certified Operational Grade 1 and Security Grade
  • Cold-formed steel, zinc plated with dichromate for corrosion resistance
  • Ability to easily re-hand the lock in the field
  • Requires two cylinders
  • Conventional cylinders or (SFIC) small format interchangeable core housings (less core)

Models: MA441P-DG-605, MA441CP6-DG-605, MA441B-DG-605, MA441L-DG-605, MA441P-DG-606, MA441CP6-DG-606, MA441B-DG-606, MA441L-DG-606, MA441P-DG-613, MA441CP6-DG-613, MA441B-DG-613, MA441L-DG-613, MA441P-DG-622, MA441CP6-DG-622, MA441B-DG-622, MA441L-DG-622, MA441P-DG-626, MA441CP6-DG-626, MA441B-DG-626, MA441L-DG-626, MA441P-DG-630, MA441CP6-DG-630, MA441B-DG-630, MA441L-DG-630

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 622 Matte Black, 626 Satin Chrome, 630 Satin Stainless Steel
Lock Function

Classroom Security
Cylinders

Requires 2: 985-6Pin Mortise Cylinder or 987 Mortise Cylinder Housing
Usage

Heavy Duty
ANSI Function

F32
ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1
Fire Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
Handing

Right hand is standard; Reversible in the field
Backset

2-3/4"
Case

Cold formed steel, zinc dichromate plated, .090” thick
Latchbolt

Two-piece stainless steel, mechanical anti-friction bolt. 3/4" projection
Faceplate

(armored front) 1-1/4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs
Strike

Meets ANSI AII5.1 for frame preparation. Strike is non-handed
Door Thickness

1-3/4"

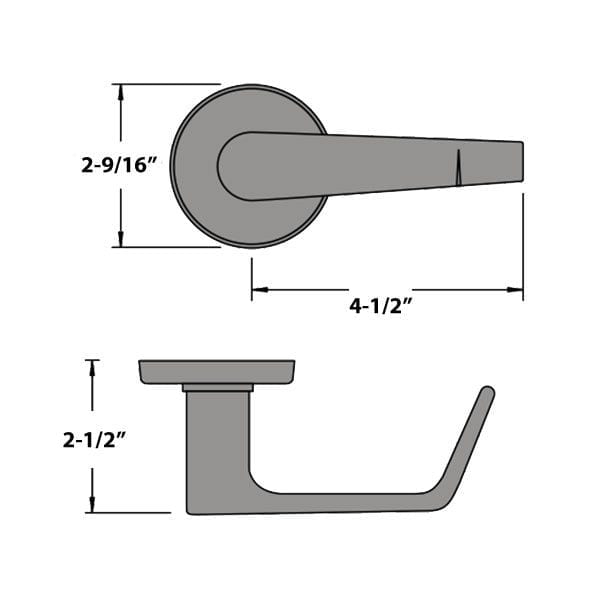

Lever Design

DG Dane Gala
Falcon_MA-Lock_Installation_Instructions Falcon_MA_Series_Service_Manual
