Falcon MA301 SG Privacy Mortise Lock, Sutro Lever, Gala Rose

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI Grade-1 Certified
  • ANSI Function: F02 – Privacy
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear

Falcon MA301 SG Privacy Mortise Lock, Sutro Lever, Gala Rose

The MA Series is a heavy-duty, Grade 1 mortise lock that offers versatility, toughness, and dependability at an affordable price.

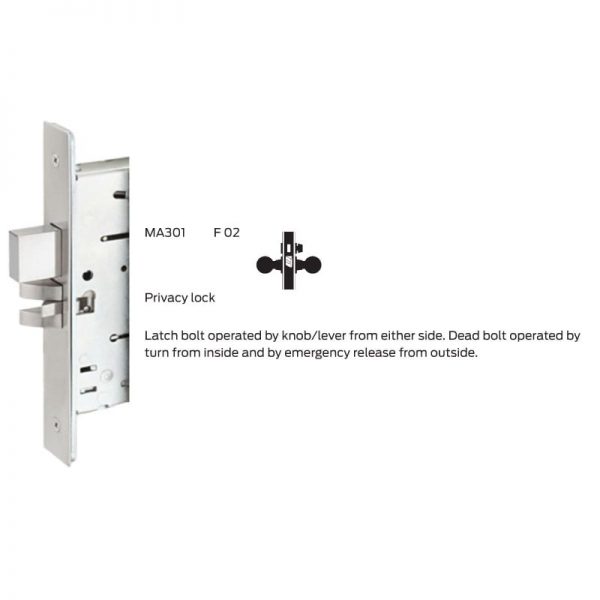

ANSI F02 – Privacy – Latch bolt operated by lever from either side. Deadbolt operated by turn from inside and by emergency release from outside.

  • UL listed and certified Operational Grade 1 and Security Grade
  • Cold-formed steel, zinc plated with dichromate for corrosion resistance
  • Ability to easily re-hand the lock in the field

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 625 Bright Chrome, 626 Satin Chrome, 630 Satin Stainless Steel

Usage

Heavy Duty

Lever Design

SG Sutro Gala

Lock Function

Privacy

ANSI Function

F02

ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1

Fire Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated

Handing

Right hand is standard; Reversible in the field

Backset

2-3/4"

Case

Cold formed steel, zinc dichromate plated, .090” thick

Latchbolt

Two-piece stainless steel, mechanical anti-friction bolt. 3/4" projection

Deadbolt

1" throw, stainless steel with two 13/16" diameter hardened steel, free-turning, saw-resistant roller.

Faceplate

(armored front) 1-1/4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs

Strike

Meets ANSI AII5.1 for frame preparation. Strike is non-handed

Door Thickness

1-3/4"

Falcon_MA-Lock_Installation_Instructions Falcon_MA_Series_Service_Manual
