Falcon MA301 Privacy Mortise Set w/ Quantum-Gala Lever Trim

$210.00

This item ships FREE! Usually Ships: 5-10 Days
  • Heavy-Duty Grade-1 – 626 Finish
  • ANSI Function: F02 – Privacy
  • ADA Compliant – 3 Hour Fire-Rated

The MA Series lock delivers high performance at an affordable cost in an office, hospital, education or other commercial project. It provides security and is built to stand up to constant use without fail. The MA Series is one of Falcon’s toughest, most dependable locks. Plus they’re backed by one of the best names in the business – Allegion.

ANSI F02 – Privacy – Latch bolt operated by lever from either side. Dead bolt operated by turn from inside and by emergency release from outside.

Brand

Lock Function

Privacy

Usage

Heavy Duty

ANSI Function

F02

ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1

Fire Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated

Handing

Right hand is standard; Reversible in the field

Backset

2-3/4"

Case

Cold formed steel, zinc dichromate plated, .090” thick

Latchbolt

Two-piece stainless steel, mechanical anti-friction bolt. 3/4" projection

Deadbolt

1" throw, stainless steel with two 13/16" diameter hardened steel, free-turning, saw-resistant roller.

Faceplate

(armored front) 1-1/4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs

Strike

Meets ANSI AII5.1 for frame preparation. Strike is non-handed

Door Thickness

1-3/4"

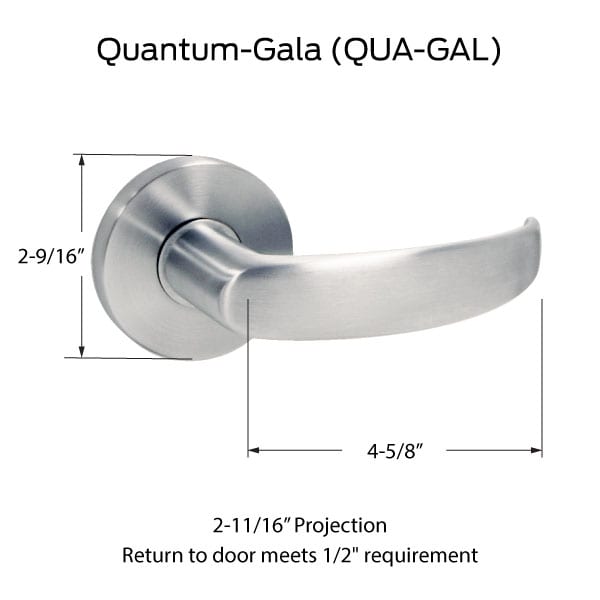

Lever Design

Quantum-Gala

Finishes

626 Satin Chrome

Falcon_MA-Lock_Installation_Instructions Falcon_MA_Series_Service_Manual
