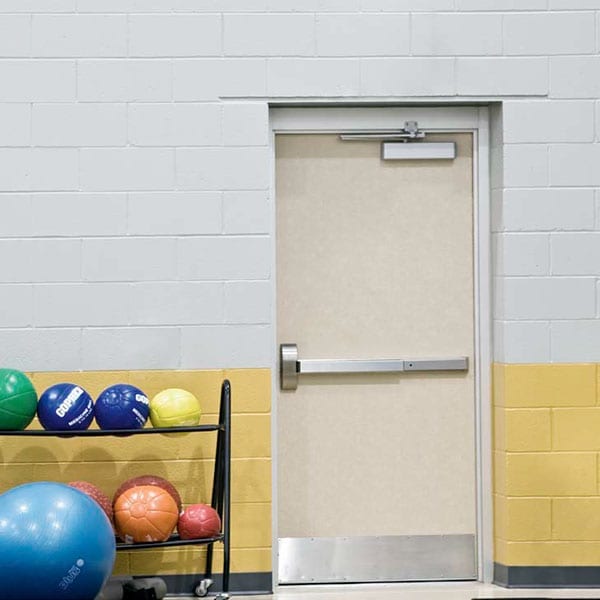

Dormakaba 9500 (08) Mortise Exit Device, Exit Only

Usually Ships: 1-2 Business Days
  • Heavy-Duty – ANSI/BHMA Grade-1 Certified
  • Exit Only Model (trim sold separately)
  • Includes Mortise Body and Strike

Available Options:


Dorma 9500/F9500 Grade-1 Mortise Lock Exit Device, Wide Stile Pushpad, Satin Stainless Steel Finish

The 9500 includes a heavy-duty, high-quality deadlocking mortise lock that provides a high level of security and exceptional durability. This premium exit device is for high-impact applications such as schools, universities, and other institutional or commercial buildings.

  • 9500 (08) For EO, 02, 08, 23 functions Dorma outside exit device trim sold separately)
  • Devices fit standard 1-3/4”- 2-1/4” thick doors
  • F9500: UL Listed, fire-rated
  • 630 satin stainless steel finish

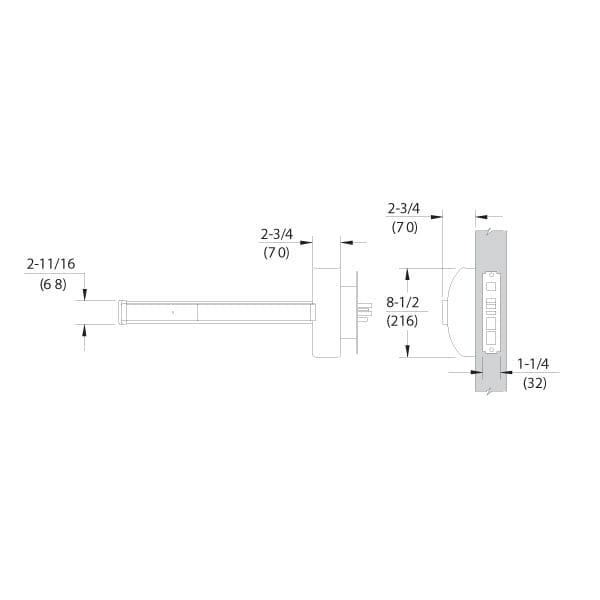

Size A – 34" to 48", Size B – 28" to 36"


630 Satin Stainless Steel


Heavy Duty

ANSI/BHMA Standard

Certified/listed to ANSI/BHMA 156.3, Grade 1 for exit devices

Fire Rating

9500: Non-Fire-Rated – F9500: 3 Hour Fire-Rated

Stile Type

Wide (Standard)


4-1/2 " minimum

Dogging Feature

Hex key dogging standard on non-fired-rated devices


Easily Re-handed in the field – Shipped as RHR
