Detex Advantex F20 Series Fire-Rated Surface Vertical Rod Exit Device

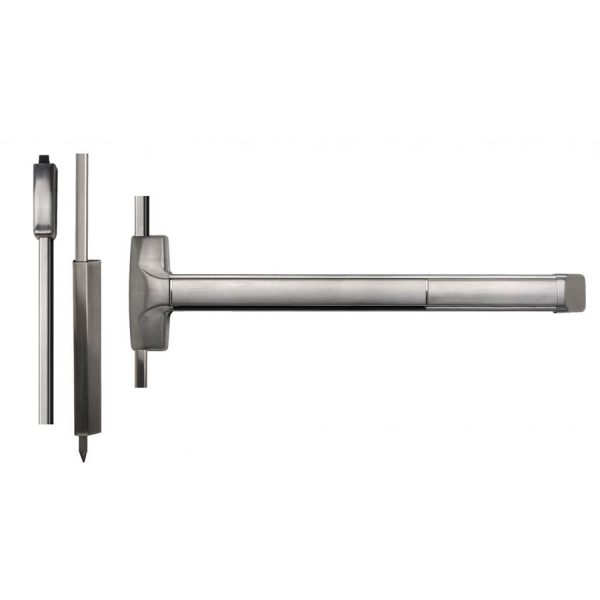

Detex F20 Fire-Rated Surface Vertical Rod Exit Device, Exit Only

The 20 Series surface vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of double doors without a mullion. All 20 series SVR exit devices are supplied with top and bottom rod covers and an ADA compliant ramped bottom bolt cover. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

• Exit Only (trim sold separately)
• UL Listed Fire Exit Hardware for 3 hours, maximum 4’x10’ single doors and 8’x10’ pairs of doors
• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
• Tested beyond 1,000,000 cycles – Twice the cycling required for Grade 1 UL testing
• Stainless steel deadlocking top latch
• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Handed – field reversible
• Field sizeable
