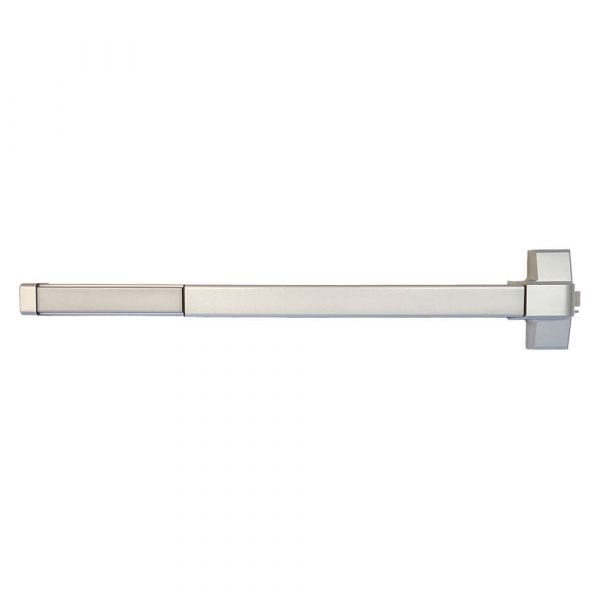

Design Hardware F2000R Fire-Rated Rim Exit Device

Usually Ships: 1-2 Business Days
  • Meets ANSI A156.3 – Grade-1 Standards
  • Non-handed, For Metal or Wood Doors
  • UL Listed, 3 Hour Fire-Rated

Available Options:

Clear

Design Hardware F2000R Grade-1 Rim Exit Device, Fire Listed, Exit Only

The F2000R is an economical fire-rated exit device option that is competitively priced to keep your project on budget. The F2000 Series meets ANSI A156.3-Grade 1 Standards and complies with the ADA American Disabilities Act providing you with durability, toughness, and safety. Design Hardware products meet or exceed industry standards and can be substituted for any other specified brand.

  • Exit Only (Outside Trim Sold Separately)
  • UL Listed for “A” Label 3-Hour Fire Doors and for Panic Exit Hardware
  • Center Case Dim.: 6″ Height x 2-5/16″ Wide x 2-1/2″ Thick – 4″ Minimum stile required
  • Mechanism Case Dim.: 1-5/8″ Height x 1-13/16″ Wide
Brand

Finishes

AL Aluminum Powder Coat, BZ Dark Bronze Powder Coat, GLD Gold Powder Coat

Length

33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0")

ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards

Usage

Medium Duty

Trim

None – Exit Only (Outside Trim Sold Separately)

Fire Rating

UL Listed up to 3 Hours

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim

Handing

Non Handed – Completely Reversible

Dogging Feature

None

Latchbolt

Deadlatching, 5/8" throw

Strike

Roller Strike with 5/8″ projection & 1/8″ shim

Fasteners

Wood, Machine & Self Tapping Machine Screws

Stile Type

Wide (Standard)

Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)

F2000R Installation Instructions
