Corbin-Russwin-CLX3300-Series-NZ-Lever-D-Rose-626-Finish-IC

Corbin-Russwin-CLX3300-Series-CLX3351-Function-NZ-Lever-D-Rose-626-Finish

Corbin Russwin CLX3351 NZD CL6 Extra Heavy Duty Entrance/Office Lever Lockset, LFIC Prep

Usually Ships: 1-2 Business Days

Extra Heavy Duty, BHMA/ANSI Grade 1 Certified
Prepped for 6-pin LFIC (less core)
ANSI F109 Entrance / Office

Available Options:

Finish

Clear

Quantity:

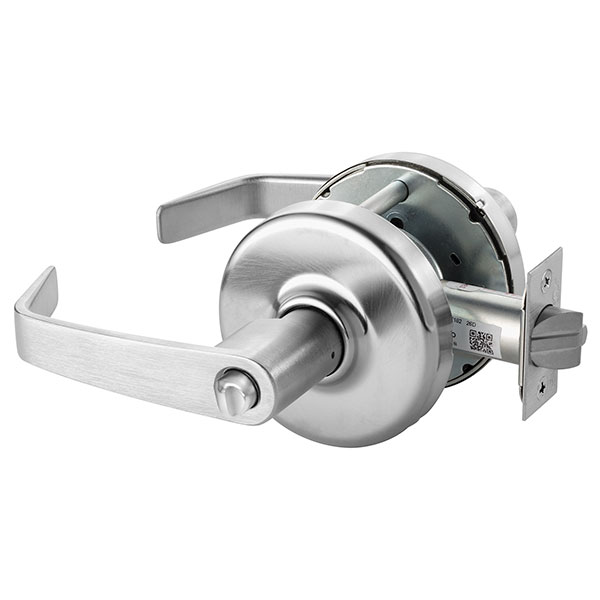

Corbin Russwin CLX3351 Grade 1 Cylindrical Lock, Entrance or Office Function, NZ Newport Lever, D Rose, (LFIC) Large Format Interchangeable Core, 6-Pin, Less Core

The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability.

ANSI/BHMA A156.2, Series 4000, Grade 1 certified
UL-cUL listed for 3-hour fire doors and windstorm applications
Exceeds 3,100 in-lb abusive locked lever torque with no entry while maintaining egress (2.6 times ANSI/BHMA A156.2 requirements)
Certified above & beyond testing to withstand high volume traffic
Independent return springs allow lock to exceed ANSI/BHMA A156.2 Grade 1 cycle requirements without lever sag
Florida Building Code Approved FL# 3067

ANSI F109 Entrance or Office

Deadlocking latchbolt by lever either side, except when turn button locks outside lever. Pushing turn button in locks outside lever. Pushing turn button in locks outside lever, requiring use of key outside to unlock. (Lever handle is freewheeling in locked position)
Turning inside lever unlocks outside lever
Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside lever until button is manually turned to unlock position
Inside lever always free

Applications

Schools & Universities
Hospitals
Corporate campuses
Government/Municipal Buildings
Commercial Buildings

Brand	Corbin Russwin
Finishes	605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 625 Bright Chrome, 626 Satin Chrome, BSP Black Suede Powder Coat
Lock Function	Entry (Entrance), Office
Lever Design	NZD (Newport)
Usage	Heavy Duty
ANSI/BHMA Standard	Certified ANSI A156.2 Series 4000 — Grade 1
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Fire Rating	Fire Rated – UL10C – Positive Pressure
Cylinder	Prepped for (FSIC) Full Size Interchangeable Core (less core)
Latch	1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Backset	2-3/4"
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing	Non-Handed
Door Thickness	1-3/4" to 2"
Warranty	10 Years
