Falcon W581PD LAT (LATITUDE) Storeroom Lever Lock

$81.07

Usually Ships: 2-3 Business Days

ANSI/BHMA A156.2, Grade 2 certified
ANSI function F86: Storeroom
ADA compliant, 3-hour fire-rated

Available Options:

Clear

Finish
Keyway

Quantity:

Added to Cart

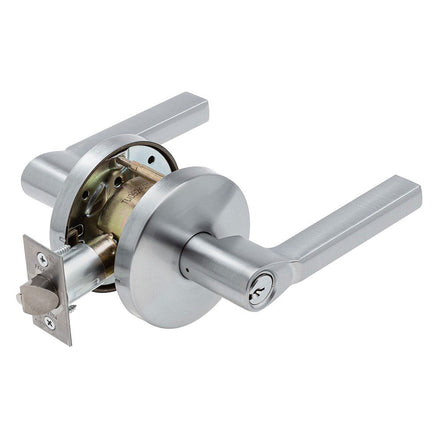

Falcon W581P6D Grade 2 Storeroom Cylindrical Lock, Key in Lever Cylinder, Latitude Lever, Standard Rose

When an affordable lock is needed for low to medium traffic doorways in office, government, retail, industrial or multi-family applications, the W Series lock fits perfectly. The Falcon W Series offers a quality product at a value price, and is backed by one of the best names in the business - Allegion.

ANSI Function F86 – Deadlocking latch bolt by lever inside or key outside. Outside lever is always locked. Inside lever is always free.

Non-handed for easy field assembly
Heavy duty springs for better lever return and to prevent sagging
Manufactured to Allegion’s industry-leading quality standards

codes

Brand	Falcon
Finishes	619 Satin Nickel, 643e Aged Bronze, 613 Oil Rubbed Bronze, 622 Matte Black, 626 Satin Chrome
Lock Function	Storeroom
Usage	Medium Duty
Lever Design	LAT (Latitude)
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Backset	2-3/4"
ANSI/BHMA Standard	Tested and certified under ANSI/BHMA A156.2, Grade 2
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Fire-Rating	UL/cUL listed up to 3 Hours - UL symbol on the latch front
Handing	Non-Handed
Door Thickness	1-3/8" to 1-3/4"
Cylinder & Keys	6-pin conventional, keyed different, with 2 keys
Keyway	Schlage C Keyway, Falcon G Keyway
Latch	1/2” throw, deadlocking - 1-1/8" x 2-1/4" face
Warranty	10 Year Limited
