Falcon

Falcon W161D D (DANE) Exit/Communicating Lever Set

$73.16
Usually Ships:  1-2 Business Days
  • ANSI/BHMA A156.2, Grade 2 certified
  • Blank plate outside, inside lever always free
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

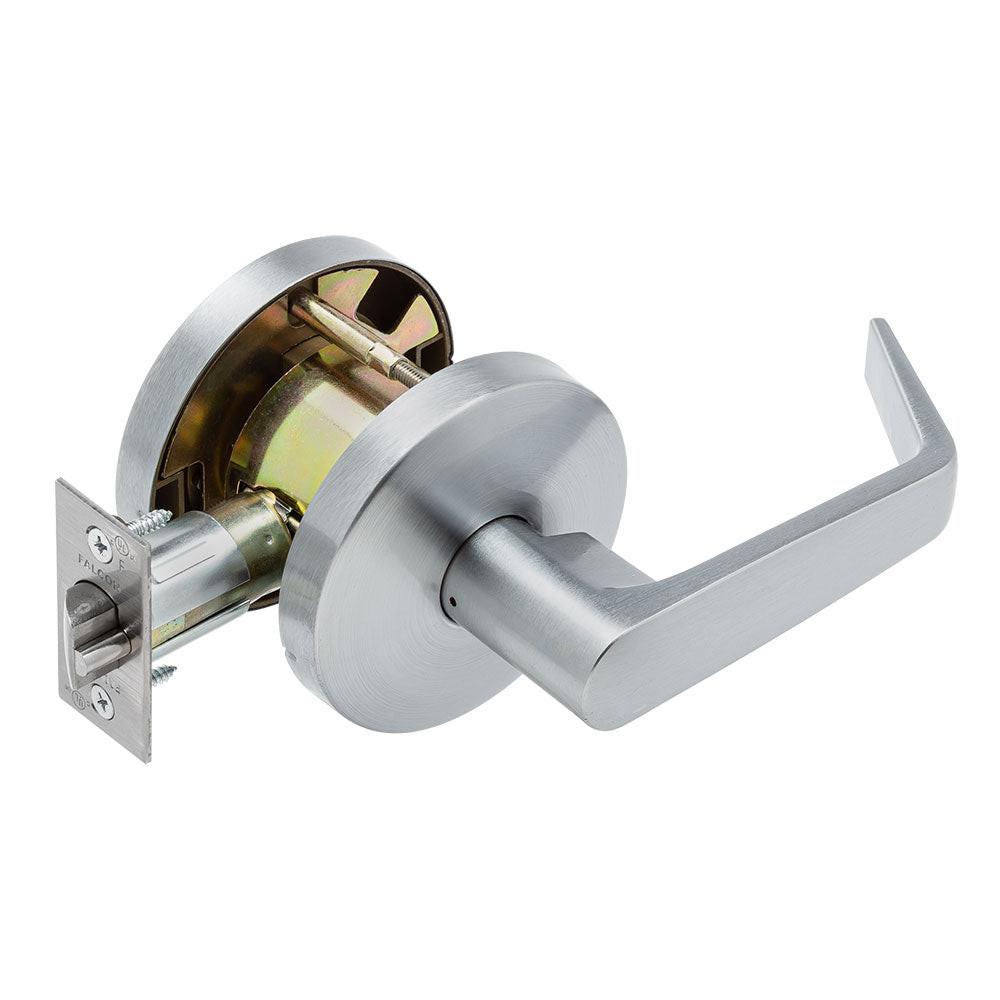

Falcon W161D Grade 2 Exit/Communicating Cylindrical Lock, Dane Lever, Standard Rose

When an affordable lock is needed for low to medium traffic doorways in office, government, retail, industrial or multi-family applications, the W Series lock fits perfectly. The Falcon W Series offers a quality product at a value price, and is backed by one of the best names in the business - Allegion.

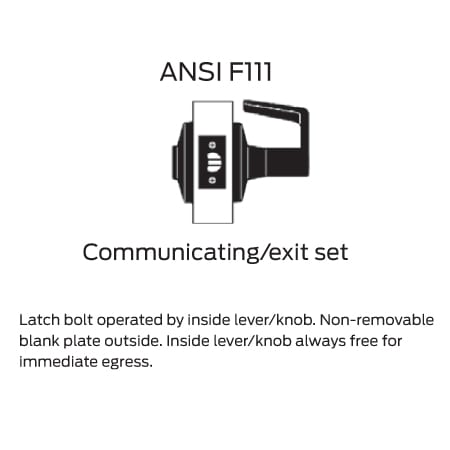

ANSI Function F111 - Latch bolt operated by inside lever. Non-removable blank plate outside. Inside lever always free for immediate egress.

  • Non-handed for easy field assembly
  • Heavy duty springs for better lever return and to prevent sagging
  • Manufactured to Allegion’s industry-leading quality standards

codes

Brand

Finishes

626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 622 Matte Black, 613 Oil Rubbed Bronze, 625 Bright Chrome, 643e Aged Bronze, 619 Satin Nickel

Lock Function

Exit / Communicating

Lever Design

D (Dane)

Usage

Medium Duty

ANSI/BHMA Standard

Tested and certified under ANSI/BHMA A156.2, Grade 2

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL listed up to 3 Hours - UL symbol on the latch front

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"

Warranty

10 Year Limited
