Falcon W501PD Q (QUANTUM) Entry Lever Lock

$81.07

Usually Ships: 1-2 Business Days

ANSI/BHMA A156.2, Grade 2 certified
ANSI function F82: Entry
ADA compliant, 3-hour fire-rated

Available Options:

Clear

Finish
Keyway

Quantity:

Added to Cart

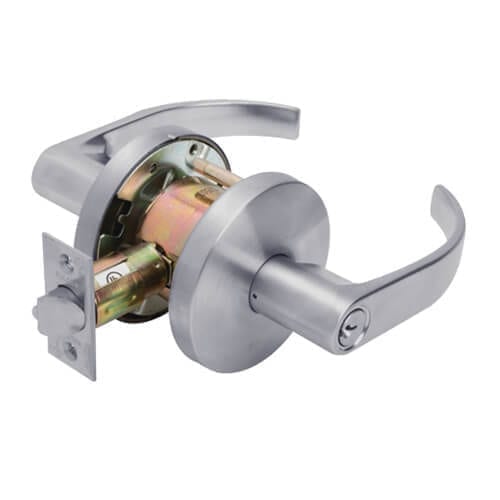

Falcon W501P6D Grade 2 Entry Cylindrical Lock, Key in Lever Cylinder, Quantum Lever, Standard Rose

When an affordable lock is needed for low to medium traffic doorways in office, government, retail, industrial or multi-family applications, the W Series lock fits perfectly. The Falcon W Series offers a quality product at a value price, and is backed by one of the best names in the business - Allegion.

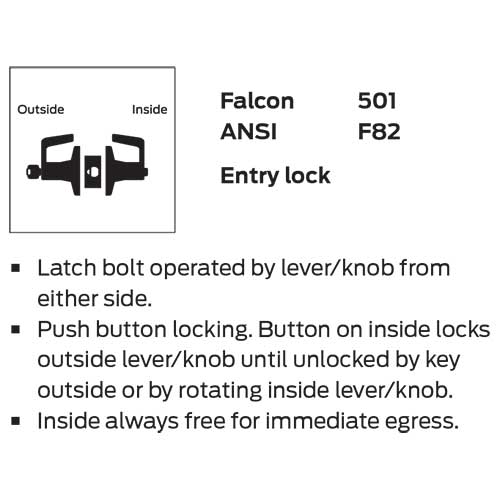

ANSI Function F82 – Latch bolt operated by lever/knob from either side. Push button locking. Button on inside locks outside lever/knob until unlocked by key outside or by rotating inside lever/knob. Inside always free for immediate egress.

Non-handed for easy field assembly
Heavy-duty springs for better lever return and to prevent sagging
Manufactured to Allegion’s industry-leading quality standards

codes

Brand	Falcon
Finishes	626 Satin Chrome, 606 Satin Brass, 622 Matte Black, 613 Oil Rubbed Bronze
Lock Function	Entry (Entrance)
Usage	Medium Duty
Lever Design	Q (Quantum)
Keyway	Schlage C Keyway, Falcon G Keyway
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Backset	2-3/4"
ANSI/BHMA Standard	Tested and certified under ANSI/BHMA A156.2, Grade 2
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Fire-Rating	UL/cUL listed up to 3 Hours - UL symbol on the latch front
Handing	Non-Handed
Door Thickness	1-3/8" to 1-3/4"
Cylinder & Keys	6-pin conventional, keyed different, with 2 keys
Latch	1/2” throw, deadlocking - 1-1/8" x 2-1/4" face
Warranty	10 Year Limited
