Falcon

Falcon W561PD D (DANE) Classroom Lever Lock

$73.33
Usually Ships:  1-2 Business Days
  • ANSI/BHMA A156.2, Grade 2 certified
  • ANSI function F84: Classroom
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

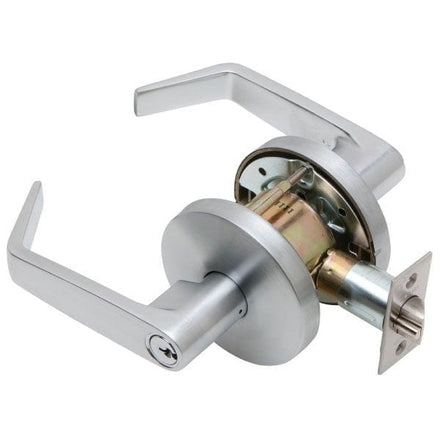

Falcon W561P6D Grade 2 Classroom Cylindrical Lock, Key in Lever Cylinder, Dane Lever, Standard Rose

When an affordable lock is needed for low to medium traffic doorways in office, government, retail, industrial or multi-family applications, the W Series lock fits perfectly. The Falcon W Series offers a quality product at a value price, and is backed by one of the best names in the business - Allegion.

ANSI Function F84 - Deadlocking latch bolt by levers. Outside lever is locked by key in outside lever. Inside lever is always free.

  • Non-handed for easy field assembly
  • Heavy duty springs for better lever return and to prevent sagging
  • Manufactured to Allegion’s industry-leading quality standards

codes

Brand

Finishes

626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 622 Matte Black, 613 Oil Rubbed Bronze, 625 Bright Chrome, 643e Aged Bronze, 619 Satin Nickel

Lock Function

Classroom

Lever Design

D (Dane)

Keyway

Schlage C Keyway, Falcon G Keyway

Usage

Medium Duty

ANSI/BHMA Standard

Tested and certified under ANSI/BHMA A156.2, Grade 2

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL listed up to 3 Hours - UL symbol on the latch front

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"

Warranty

10 Year Limited
