Falcon W511PD D (DANE) Entry/Office Lever Lock

$73.33

Usually Ships: 1-2 Business Days

ANSI/BHMA A156.2, Grade 2 certified
ANSI function F109: Entry/Office
ADA compliant, 3-hour fire-rated

Available Options:

Clear

Finish
Keyway

Quantity:

Added to Cart

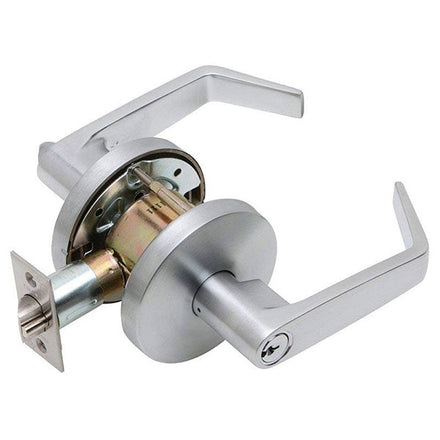

Falcon W511P6D Grade 2 Entry/Office Cylindrical Lock, Key in Lever Cylinder, Dane Lever, Standard Rose

When an affordable lock is needed for low to medium traffic doorways in office, government, retail, industrial or multi-family applications, the W Series lock fits perfectly. The Falcon W Series offers a quality product at a value price and is backed by one of the best names in the business - Allegion.

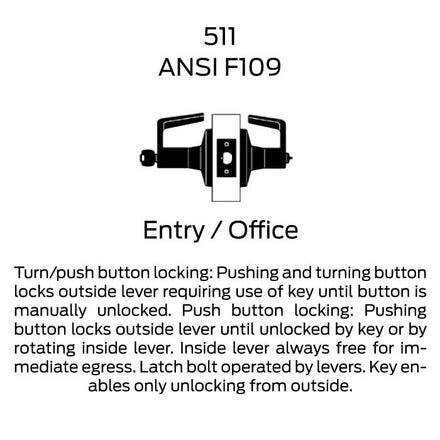

ANSI Function F109 - Deadlocking latch bolt by levers. Turn/push button locking. Pushing and turning button locks outside lever, requiring use of a key for unlocking the door until button is manually unlocked. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever is always free.

Non-handed for easy field assembly
Heavy-duty springs for better lever return and to prevent sagging
Manufactured to Allegion’s industry-leading quality standards

Brand	Falcon
Finishes	626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 622 Matte Black, 613 Oil Rubbed Bronze, 625 Bright Chrome, 643e Aged Bronze, 619 Satin Nickel
Lock Function	Entry (Entrance)
Lever Design	D (Dane)
Keyway	Schlage C Keyway, Falcon G Keyway
Usage	Medium Duty
ANSI/BHMA Standard	Tested and certified under ANSI/BHMA A156.2, Grade 2
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Fire-Rating	UL/cUL listed up to 3 Hours - UL symbol on the latch front
Cylinder & Keys	6-pin conventional, keyed different, with 2 keys
Backset	2-3/4"
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Latch	1/2” throw, deadlocking - 1-1/8" x 2-1/4" face
Handing	Non-Handed
Door Thickness	1-3/8" to 1-3/4"
Warranty	10 Year Limited
