Product Overview
Cal-Royal Pioneer SL Series Cylindrical Lever Lock, SL04 Communicating Function

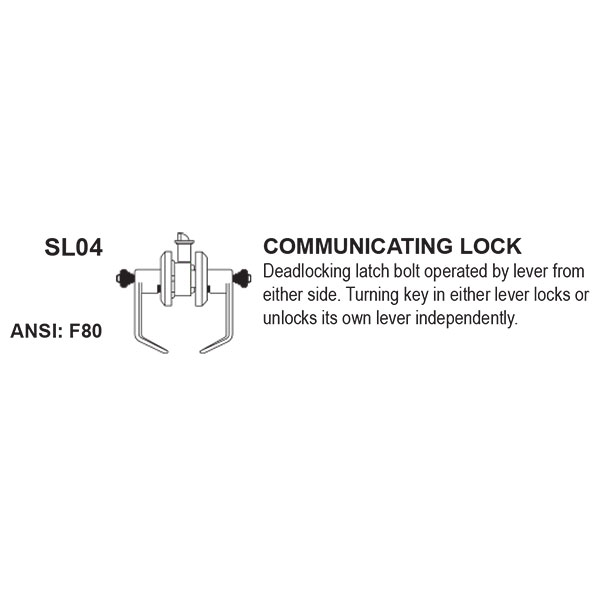

ANSI Function F80 – Deadlocking latch bolt operated by lever from either side. Turning key in either lever locks or unlocks its own lever independently.
- Optional thru-bolt installation
- Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
- Meets ADA requirements specially designed for Barrier-Free application
- Conforms with ANSI / BHMA A156.2, Series 4000, Grade 2 Requirements Exceeds 400,000 Cycles
- For offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings
Brand | |
---|---|
Finishes | US26D (626) Satin Chrome |
Lock Function | Communicating |
Usage | Medium Duty |
ANSI/BHMA Standard | Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 |
Fire Rating | UL/cUL listed up to 3 Hours |
Keyway | Schlage C Keyway |
Latch | 1/2” throw, deadlocking – 1-1/8" x 2-1/4" face |
Backset | 2-3/4" |
Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
Handing | Non-Handed |
Door Thickness | 1-3/8" to 1-3/4" |
