Product Overview

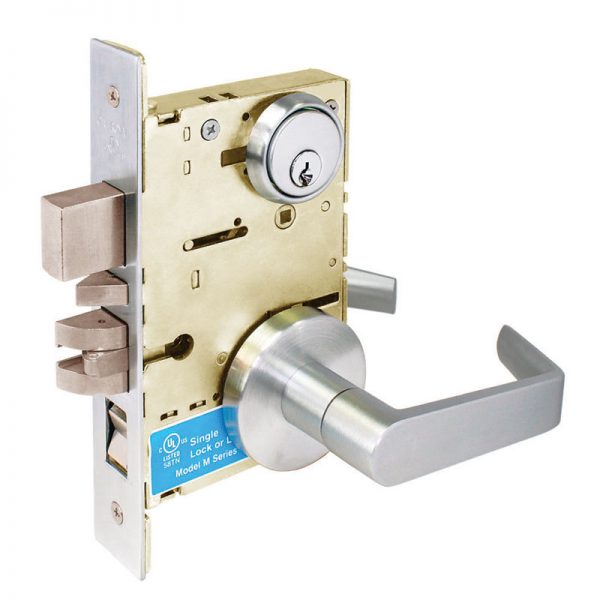

Cal-Royal SC Series Mortise Lock with SS Sectional Lever Trim, US26D/626 Satin Chrome Finish
Can retrofit Schlage L9000 Series mortise lock without drilling any additional holes on the door
Models / Functions:
- SC8010-SS Passage / ANSI Function F01 / Keyless
- SC8050-SS Office/Entrance / ANSI Function F04
- SC8070-SS Classroom / ANSI Function F05
- SC8080-SS Storeroom / ANSI Function F07
- SC8440-SS Privacy w/ Deadbolt / ANSI Function F19 / Keyless
- SC8445-SS Privacy w/ Deadbolt, Coin Turn Outside and “OCCUPIED” Indicator / ANSI Function F19B / Keyless

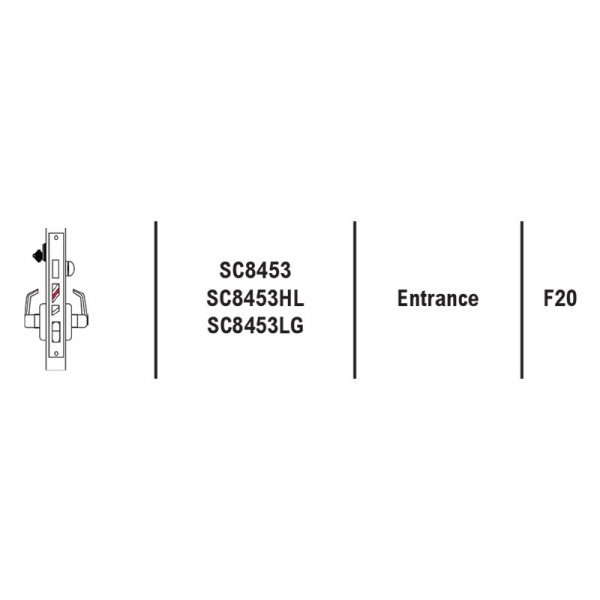

- SC8453-SS Entrance w/ Deadbolt / ANSI Function F20
- SC8456-SS Corridor w/ Deadbolt / ANSI Function F13
- SC8473-SS Dormitory / Bedroom w/ Deadbolt / ANSI Function F21
Features:
- BHMA Certified Lifetime Warranty, GRADE 1
- Can retrofit Schlage L9000 Series mortise lock without drilling any additional holes on the door for sectional and escutcheon trims
- Conforms to federal specification type 86; and to all dimensional and operational performances of ANSI A156.13-1 80, Series 1000, Extra Heavy Duty
- UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
- Rust-proof heavy-duty 2 ¾” backset lock case
- Individual spring to prevent lever sag, easily reversible
- Forged brass lever handles exceed the requirements of ADA (American Disability Act)
- Auxiliary latch bolt
- Armored front plate conceals lock mounting screws
- 1″ throw heavy-duty deadbolt with anti-saw hardened pins
- Heavy duty ¾” latch bolt with anti-friction latch, easily reversible
- Backset: 2 3/4″ backset
- Easily Re-handed in the field
- Keyed functions include mortise cylinder, Schlage C Keyway
Brand | |
---|---|
Model | SC8010 Passage, SC8050 Office/Entrance, SC8070 Classroom, SC8080 Storeroom, SC8440 Privacy Bedroom/Bath, SC8445 Privacy Bedroom/Bath w/ Indicator, SC8453 Entrance, SC8456 Corridor, SC8473 Dormitory / Bedroom |
Finish | Satin Chrome |
Finishes | US26D (626) Satin Chrome |
ANSI Grade | Meets ANSI – A156.13, Series 1000, Grade 1 Standards |
Usage | Heavy Duty |
Fire Rating | UL Listed for "A" Label 3 Hour Fire Doors |
ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
Latchbolt | Heavy duty ¾" latch bolt with anti-friction latch |
Backset | 2-3/4" |
Strike | Brass, non-handed curved strike 4-7/8" x 1 1/4" |
Handing | Handed – Field Reversible |
Door Thickness | 1-3/4" |
Warranty | Limited Lifetime Warranty |
