Cal-Royal N-MR7700EO Mortise Exit Device

Usually Ships: 2-3 Business Days

Heavy Duty, ANSI/BHMA Grade-1 Certified
For use with metal or wood doors
Includes mortise body and strike (trim sold separately)

Available Options:

Finish

Length

Fire-Rated

Clear

Quantity:

Cal-Royal N-MR7700EO / N-FMR7700EO Grade-1 Mortise Exit Device, Exit Only

The 7700 Series rim exit device offers uncompromising security and safety and is used in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.

Exit Only – (Outside Trim Sold Separately)
For Doors – Wood / Metal 1-3/4″ (44.5 mm) minimum thickness, 4-1/2″ (114 mm) minimum stile width
Mortise Lock Case – Steel
Head Chassis – Aluminum
Chassis Cover – Zinc Material
Mounting – Furnished standard with wood and machine screws
End Cap – Aluminum
Handing – Handed. Easily Field Reversible. Specify RHR or LHR for convenience.
ANSI Standard – A156.3, Grade 1
Strikes – Standard ANSI Strike (Stainless Steel)
Fire Exit Hardware – N-FMR7700 Series for fire exit hardware for all types of 8’ x 8’ double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes.
Mortise Lock – Grade (1) for 1-3/4″ (44.5mm) thick doors. Handed, Field Reversible. Specify RHR or LHR. Fits door prepared for ANSI Standard A115.1

Brand	Cal-Royal
Finishes	US32D (630) Satin Stainless Steel

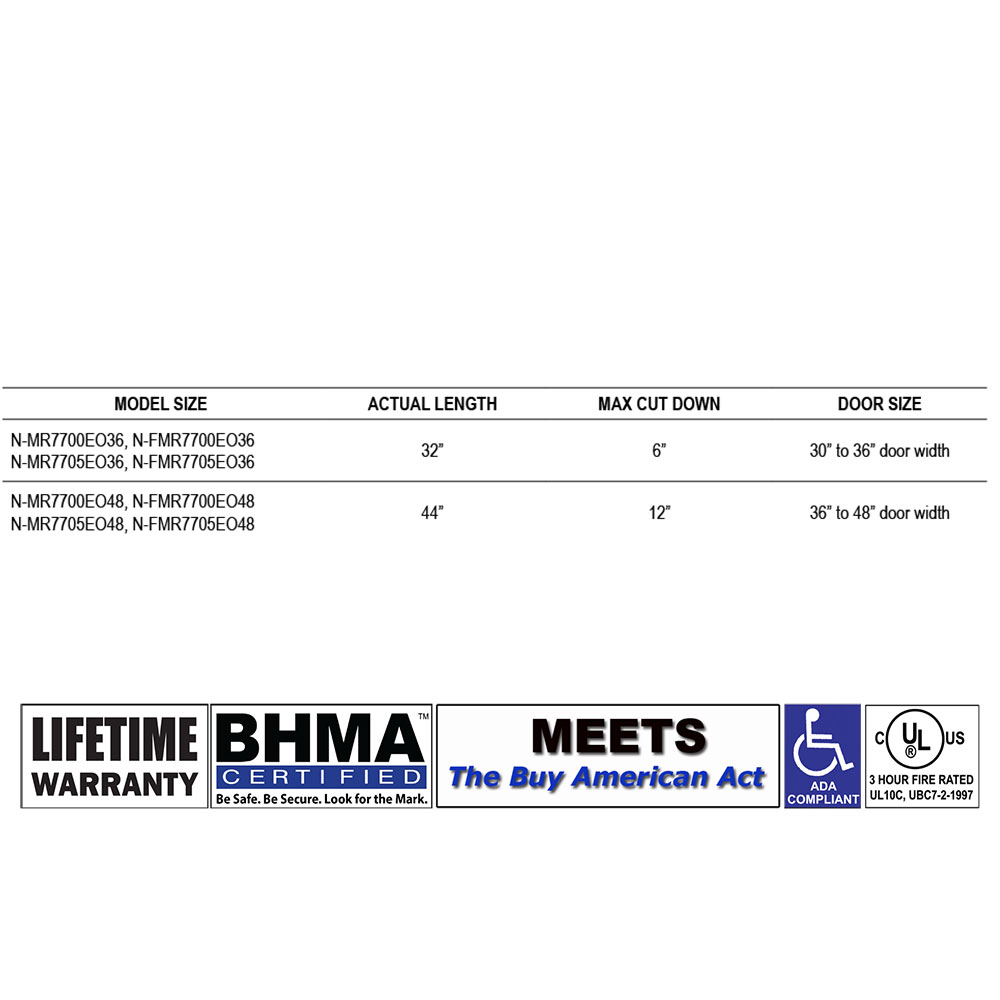

Length	3'0" (2'6" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)
Includes Trim	No
Stile Type	Wide (Standard)
Handing	Handed – Field Reversible
ANSI Grade	ANSI Grade 1
ANSI/BHMA Standard	ANSI A156.3, Grade 1
Usage	Heavy Duty
Fire Rating	N-MR7700: Non-Fire-Rated – N-FMR7700: 3 Hour Fire-Rated
Mortise Lock	Grade (1) for 1-3/4" (44.5mm) thick doors. Handed, Field Reversible. Specify RHR or LHR. Fits door prepared for ANSI Standard A115.1
Strike	4-7/8" ASA Strike
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Warranty	Limited Lifetime Warranty
