Cal-Royal N-98GLS-SVR Narrow Stile Surface Vertical Rod Exit Device

Usually Ships: 2-3 Business Days
  • Heavy Duty, ANSI A156.3 Grade-1
  • ANSI function 01, exit only (trim sold separately)
  • Typically used with aluminum glass doors

Available Options:

Product Overview

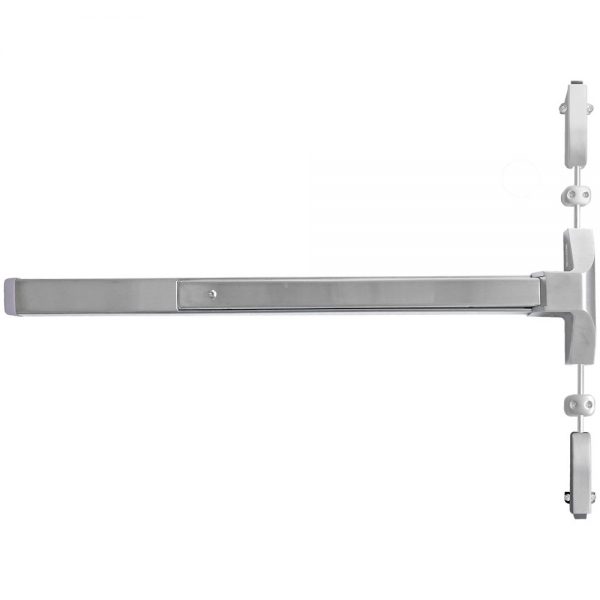

Cal-Royal N-98GLS-SVR Grade-1 Narrow Stile Surface Vertical Rod Exit Device, Exit Only

For use in institutions, schools, universities, and commercial buildings where heavy-duty, reliable operation is a requirement.

  • Exit Only (Outside Trim Sold Separately)
  • For Doors – Wood, Metal or Aluminum Glass doors with 1-3/4″ minimum stile width
  • Top & Bottom Chassis – Steel Material
  • Chassis Cover – Zinc Material
  • Mounting – Furnished standard with wood and machine screws
  • End Cap – Stainless Steel Construction
  • Alarm – Not available
  • Hand – Handed. Easily field reversible. Specify at time of order LHR or RHR for convenience
  • ANSI Standard – A156.3, Grade 1
  • Rail Assembly – Stainless Steel Material

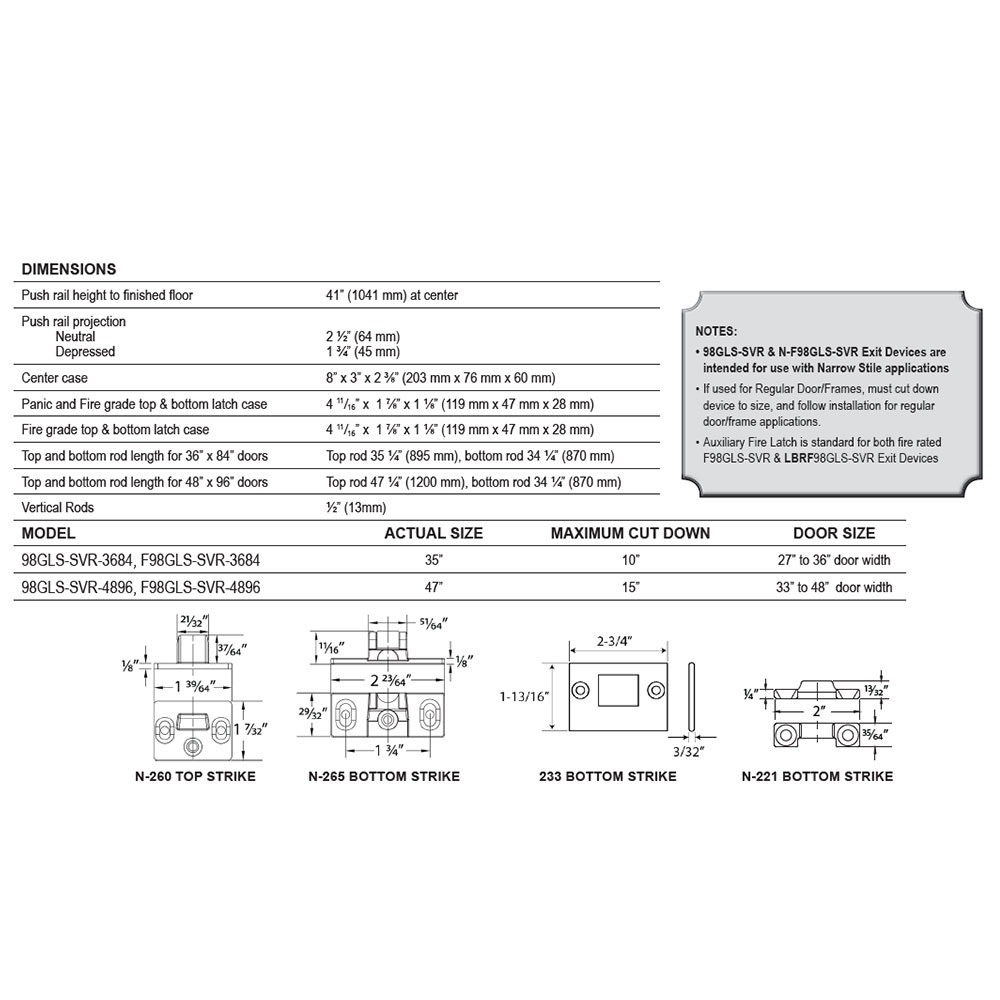

  • Strike – N-260 & N-265 (Steel), 233 (Stainless Steel); Optional N-221 Bottom Strike (Brass)
  • Dogging Feature – Allen-type key furnished standard. Optional Cylinder Dogging Kit not available
  • UL and ULC Listed – 98GLS-SVR Series for Panic & Safety
Brand

Finishes

US32D (630) Satin Stainless Steel
Size

36" x 84", 48" x 96"
Device Type

Surface Rod Device
Stile Type

Narrow
Usage

Heavy Duty
ANSI Grade

ANSI Grade 1
Fire Rating

None
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Includes Trim

No
Handing

Handed – Field Reversible
Strike

N-260 & N-265 (Steel), 233 (Stainless Steel)
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Warranty

Limited Lifetime Warranty
