Product Overview

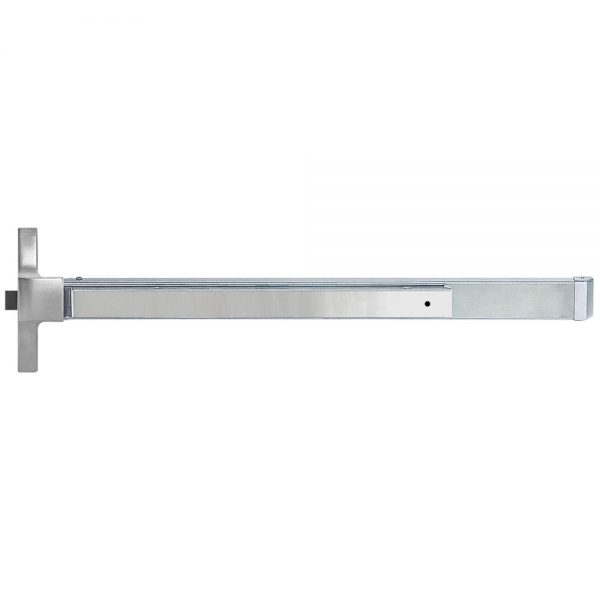

Cal-Royal GLS9800 & FGLS9800 Grade-1 Narrow Stile Rim Exit Device, Exit Only
The 9800 Series offers uncompromising security and safety in single and double fire exit doors. For use in institutions, schools, universities, and commercial buildings where heavy-duty, reliable operation is a requirement.
- Exit Only – (Outside Trim Sold Separately)
- Non-handed and easily reversible
- For 1-3/4″ Thick Wood, Metal, or Aluminum Glass doors with 1-3/4″ minimum stile width, 1-3/4″ thickness for single or double door application
- UL and ULC Listed: GLS9800 Series for Panic & Safety for all types of 4’ x 8’ single doors and 8’ x 8’ double doors. FGLS9800 Series for all types of 4’ x 8’ single doors for up to 3-hour fire-labeled installations. Conforms to UL10C and UBC7-2-1997 codes.
| Brand | |
|---|---|
| Finishes | US10B (613) Oil Rubbed Bronze, US32D (630) Satin Stainless Steel |
| Length | 36" (For 30” to 36” doors), 48" (For 37” to 48” doors) |
| Usage | Heavy Duty |
| ANSI/BHMA Standard | Certified ANSI/BHMA A156.3, Grade 1 |
| Fire Rating | 9800EO: Non-Rated – F9800: UL Listed 3 Hour Rated |
| Includes Trim | No |
| Dogging Feature | Hex key dogging standard on non-fired-rated devices |
| Latchbolt | Stainless steel 3/4” throw with anti-pick feature |
| Strike | 246 packed standard |
| Handing | Non Handed – Completely Reversible |
| Projections | Neutral 2-3/4" – Depressed 1-7/8" |
| Stile Type | Narrow |
| Minimum Stile Width | 1-3/4" |
| Door Thickness | 1-3/4" |
| Warranty | Limited Lifetime Warranty |
