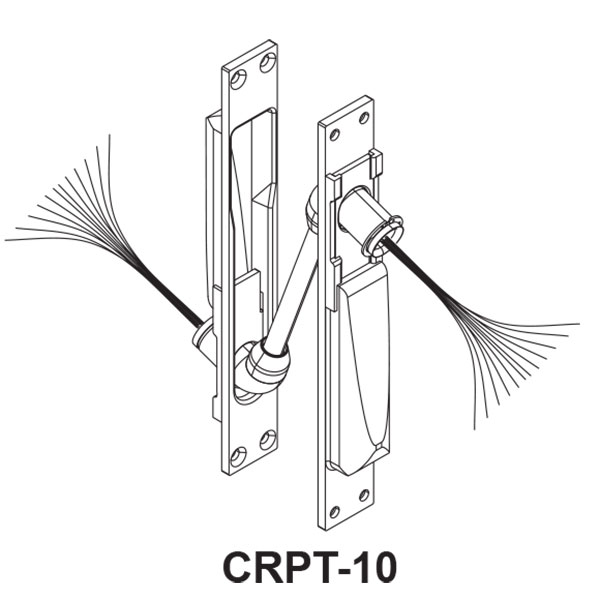

Cal-Royal CRPT-10 Concealed Electrical Power Transfer

Usually Ships: 2-3 Business Days
  • Used to transfer power from frame to door
  • ANSI/UL 10C Listed, 3 hour fire-rated
  • Ten 24 AWG wires

Available Options:


Cal-Royal CRPT-10 Concealed Electrical Power Transfer, Ten Wires

Designed to transfer electrical power from the frame to the door in a very secure manner

  • UL 10C-Listed for up to 3 hours for Fire Rated doors and frames Standard 7-2, “Fire Test of Door Assemblies” (1997)
  • UL-Listed as Miscellaneous Fire Door Accessories
  • Classified according to Uniform Building Code (UBC)
  • Unit is mortised into the edges of the door and frame and is completely concealed when door is in the close position
  • Designed for use in high-traffic openings
  • Packaged individually with fasteners for wood, steel, or aluminum doors and frames
  • All parts are made of metal including back boxes – no plastic parts
  • Crimp connectors are supplied for a more secure and clean connection
  • Housing Dimensions: 9” H x 1 ¼” W x 1 ⅝” D (229mm x 32mm x 41mm)
  • Minimum door thickness – 1 ¾”
  • (10) 24 AWG Wires
  • Max. Rating: Up to 1 AMP @ 24 VDC, 1A


ALUM (Aluminum), DURO (Dark Bronze)

Fire Rating

ANSI/UL 10C Listed, 3 hour rated

Part Type

Power Transfer
