A6660V

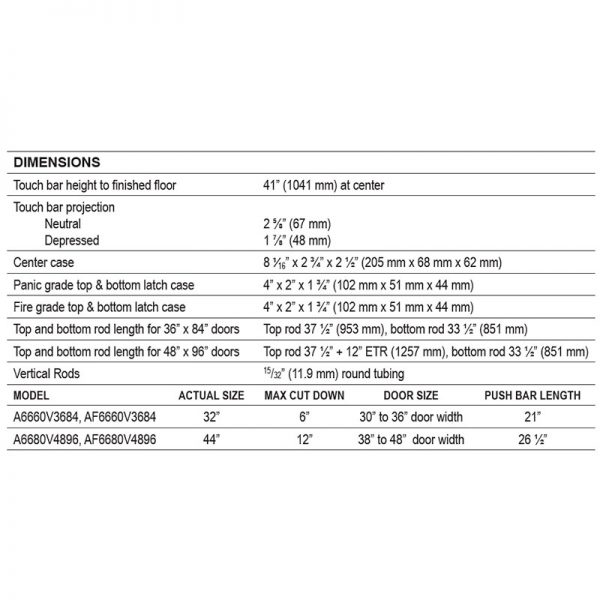

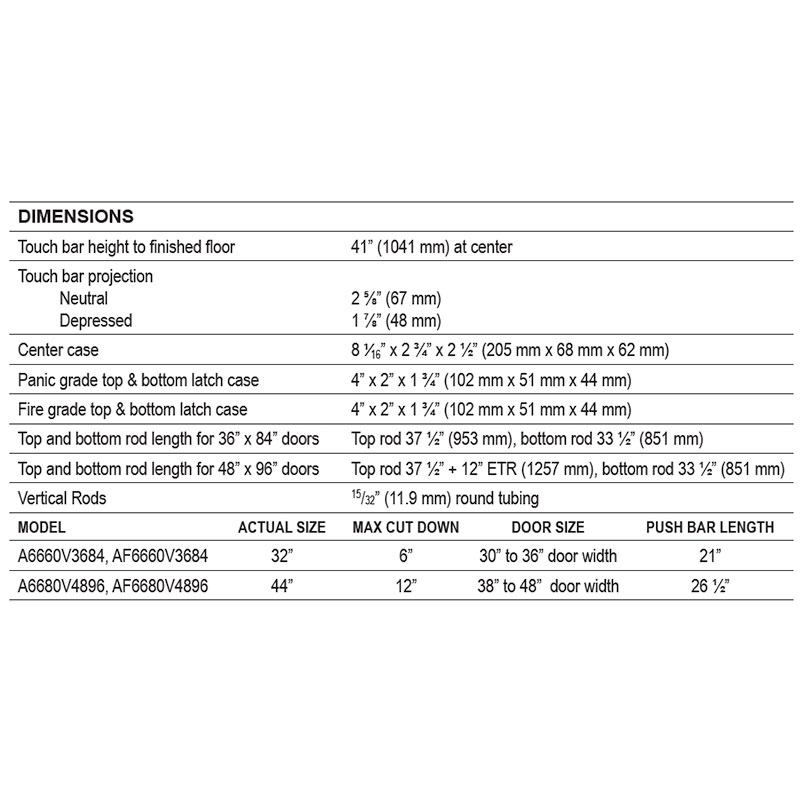

A6660Vsvr_DIM
A6660V
A6660Vsvr_DIM

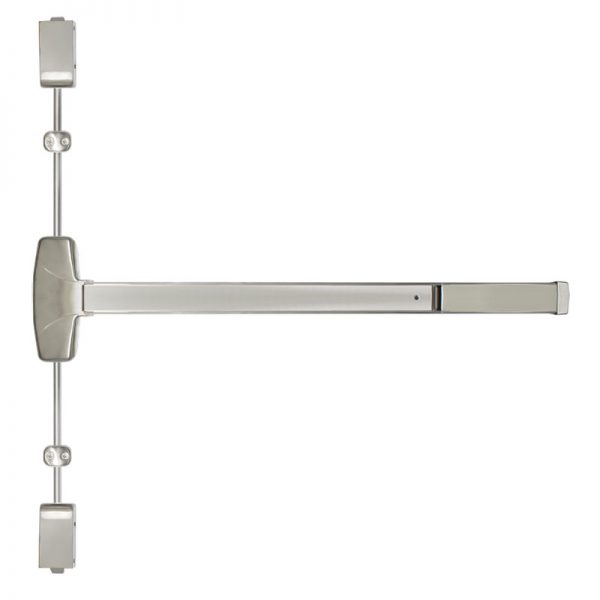

Cal-Royal A6660V Surface Vertical Rod Exit Device

Usually Ships: 2-3 Business Days
  • BHMA/ANSI A156.3 Grade-1 certified
  • Non-handed and easily reversible
  • Exit Only (trim sold separately)

Available Options:

Product Overview

Cal-Royal A6660V / AF6660V Surface Vertical Rod Exit Device, Grade-1, Exit Only

For use in institutions, schools, universities, commercial buildings where heavy-duty reliable operation is a requirement.

  • Exit Only – (Outside Trim Sold Separately)
  • ANSI A156.3, GRADE 1 heavy-duty exit device, surface vertical rod
  • Rail assemblies are heavy-duty extruded steel or stainless steel body with steel or stainless steel push pad and end caps. Rail travels in direction of the door swing.
  • Trims are thru-bolted for additional security.
  • Conforms & Meets ADA Regulations
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
  • UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
  • -F Model UL Listed for Fire Exit Hardware. 3 hours.
  • (A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
  • Uncompromising security and safety in single and double fire exit doors.
  • Chassis mounted unit construction.
  • Non-handed and easily reversible.
Brand

Finishes

ALUM Aluminum
Size

36" x 84", 48" x 96"
ANSI/BHMA Standard

ANSI A156.3, Grade 1
Usage

Medium Duty
Fire Rating

A6660V: None – AF6660V: 3 Hour Fire-Rated
Handing

Completely Reversible
Dogging Feature

Hex key dogging standard on non-fired-rated devices
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Warranty

Limited Lifetime Warranty
