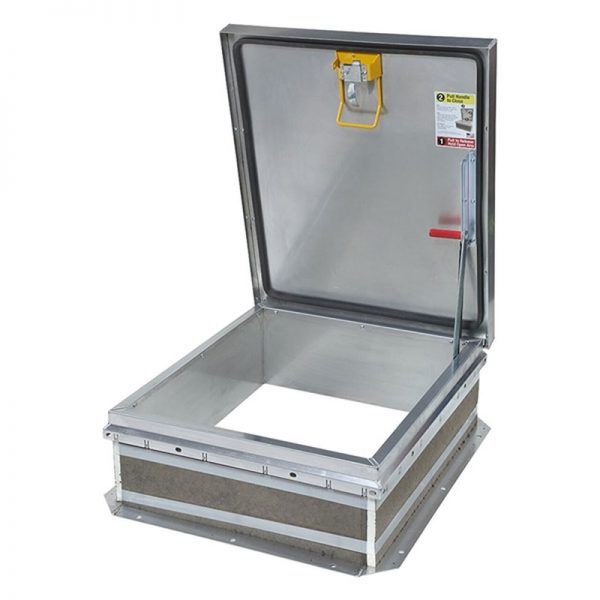

Babcock Davis BA4848 48″ x 48″ Personnel Aluminum Roof Hatch

$3,694.50

Usually Ships: 3-5 Business Days

Energy-efficient, R-6 insulation value
Easy gas spring operation
Built to withstand high winds and severe weather

Babcock Davis BRHU Personnel Series Roof Hatch, 48″ Width x 48″Length, Ladder Access

The Personnel Roof Hatch is improved to offer superior weather resistance in an easy-to-order stock roof hatch. The industry’s leading roof hatch is customizable, sized for OSHA compliant safety railings and available in a variety of materials and finishes.

Miami-Dade & Florida Approved up to 20ft²
Complies with OSHA Safety Standards
Safety Railing Ready
Easy Gas Spring Operation
Single Point Latch
Ladder Access

Model # BRHUA48X48S1T (BA4848)

Bilco Equivalent: F-50

Optional Safety Railing and Safety Posts available

Brand	Babcock Davis
Model	BRHU
Size	48" x 48"
Finishes	Mill Finish Aluminum
Material	11-Gauge, Mill Aluminum
Access Type	Ladder
Curb	Single wall curb with EZ tab counter flash and mounting flange
Cover	Formed metal cover with liner internally stiffened to withstand a live load of 40psf with a max deflection of 1/150 the span
Insulation	1 inch polystyrene in cover, 1 inch polyiso around curb; R-6
Gasket	Extruded EPDM adhesive backed gasket seal, continuous around curb and cover to assure a continuous seal
Hold Open Arm	Zinc plated steel automatic hold open arm locks cover in open position
Spring	Gas spring with damper for smooth, controlled lift assistance
Latch	Zinc plated steel latch with exterior and interior turn handle and padlock hasp; tested to 140psf wind uplift
Hinge	Heavy-duty pintle hinge with stainless steel hinge pin
Pull Handle	Interior safety pull down handle, yellow powder coat
Weight	111.2 lbs.
Warranty	5 Year
