ALREX AXP-C Hydraulic Door Closer Hinge, 5.0″ Height

Usually Ships: 2-3 Business Days

Contains all the features of a door closer
Closing and latching speed control and power adjustment
UL 10C 3-hour fire-rated (non hold open model)

Available Options:

Finish

Function

Clear

Quantity:

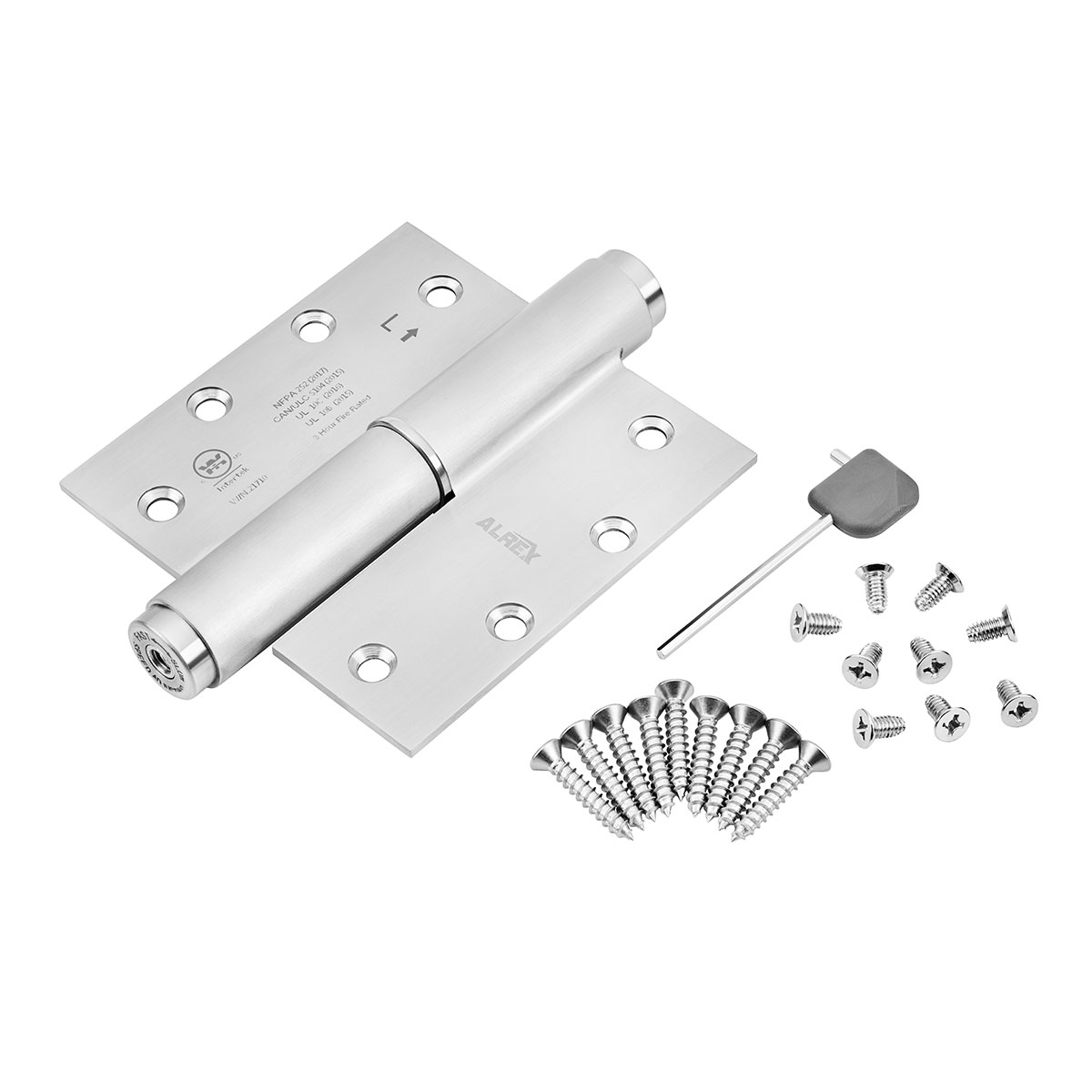

ALREX PRO AXP-C Hydraulic Door Closer Hinge, 5″ Height, Full Mortise, Square Corner

The ALREX PRO Hydraulic Door-Closer Hinge redefines door control, blending hydraulic precision with spring-hinge reliability. Built for demanding environments, its stainless-steel design ensures smooth, code-compliant performance while preventing disruptive slams—now with UL 10C 3-hour fire-rated certification for commercial use. Hold Open available for non-fire-rated openings.

Key Features

Intelligent Speed Control: Adjustable hydraulic tension ensures smooth closing, preventing abrupt closures even in high-traffic areas
5-Year Warranty: Confidence in quality and performance
UL 10C Fire Compliance: 3-hour fire-rated protection meets strict commercial building codes (NFPA 80/ADA)
Heavy-Duty Construction: 304 stainless steel body withstands 1,000,000+ test cycles
Patent #10633905: Innovative engineering backed by patented technology
Positive Latching Mechanism: Secures doors firmly into frames
Architectural-Grade Aesthetics: Slim profile integrates seamlessly with modern door designs

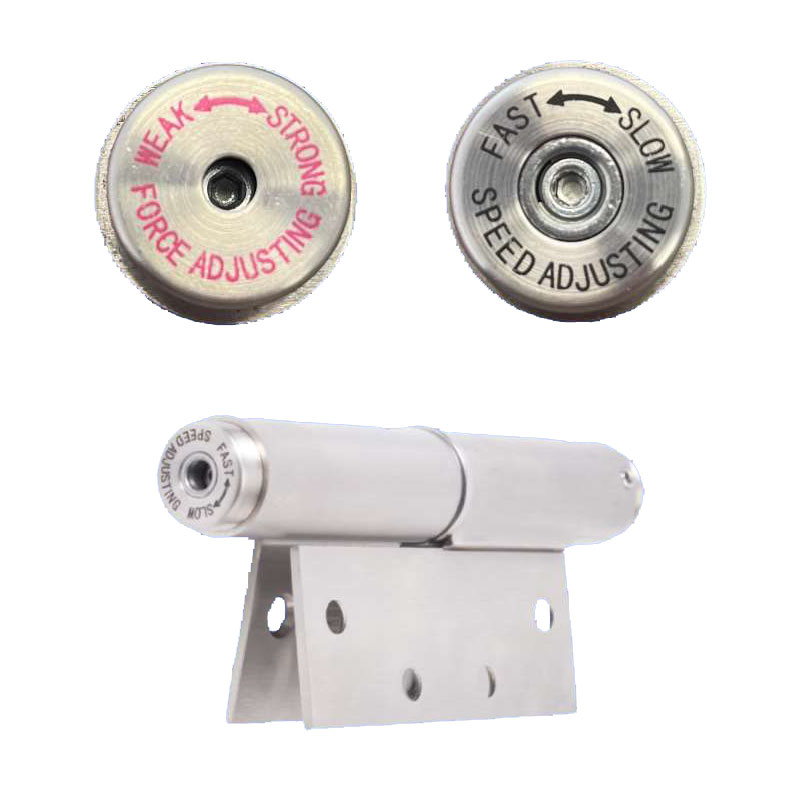

Adjustability

Spring tension (closing sweep speed) can be adjusted with the included tool on the top of the hinge
Hydraulic tension (latch strength) can be adjusted with the included tool at the bottom of the hinge

Functionality

Provides adjustable closing sweep and latch speed from 175 degrees
Hold-open option provides hold-open between 85 and 135 degrees with adjustable closing and latching

Applications

Medical
Arch Doors
Custom Applications / OEM
Transom Doors
Hospitality
Multi-Family
Gates

Brand	ALREX
Finishes	US1D/800 Black Powder Coat, 630 Satin Stainless Steel
Fire Rating	3 Hour Fire-Rated (Non Hold Open Models Only)
ADA Compliance	ADA listed as meeting requirements of 5 lb maximum opening force
Size	5"
Gauge	0 .134
Material	304 Stainless Steel
Handing	Handed – LH, RH
Fasteners	Wood & Metal Fasteners included: #12 x 1-1/4" / 12-24 x 1/2"
Temperature Range	-40°F to 212°F
ANSI/BHMA Standard	ANSI BHMA 156.17 Certified
Warranty	5 Year
