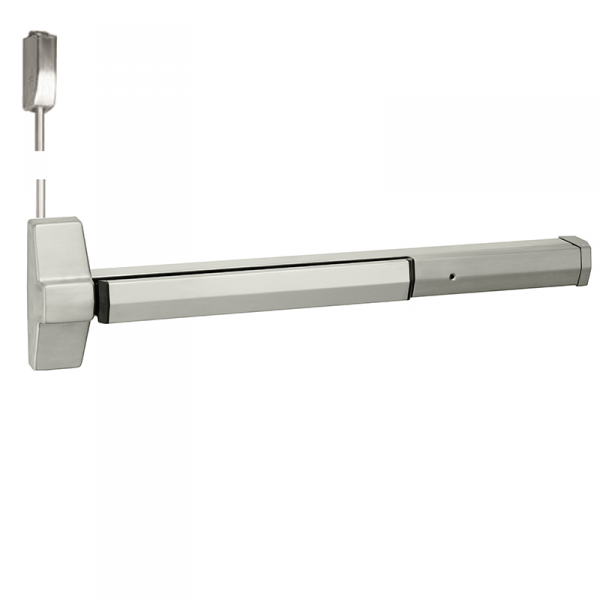

Accentra (Formerly Yale) 7170F LBR Fire-Rated Surface Vertical Rod Exit Device (Less Bottom Rod)

Usually Ships: 20-30 Business Days

Heavy Duty, ANSI/BHMA Grade-1 Certified
3′ x 7′ Surface Mounted Fire Exit Device
Less Bottom Rod (LBR) option

Available Options:

Finish

Clear

Quantity:

Accentra (formerly Yale) 7000 Series Surface Vertical Rod Exit Device, Less Bottom Rod, Fire-Rated, 7170F

Accentra 7000 Series Exit Devices deliver an unparalleled combination of durability, innovation, and aesthetics. The simple, clean lines and variety of available finishes suit the modern decor of any commercial building. When the beauty of your facility matters almost as much as life safety.

Exit Only (Accentra/Yale Exit Device Trim Sold Separately)
Certified ANSI/BHMA A156.3, Grade 1
ISO 9001: Designed and manufactured under a certified ISO 9001 quality system

Features

Designed for wide stile and flush doors
Handing – Field reversible
Interlocking top strike and latch mounting plate
Less bottom rod (LBR option)
Heat-activated door bolt (thermal pin) – Used when bottom rod is omitted from fire exit devices (LBR).

Brand	Accentra (Formerly Yale)
Finishes	605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613e Dark Oxidized Satin Bronze equivalent, 630 Satin Stainless Steel, BSP Black Suede Powder Coat
Fire Rating	Fire exit hardware (F) (8' x 10' pairs, 1-1/2 hr.) (8' x 8' pairs, 3 hr.)
ANSI/BHMA Standard	Certified ANSI/BHMA A156.3, Grade 1
Usage	Heavy Duty
Device Type	LBR (Less Bottom Rod) Surface Rod Device
Door Width Range	30" to 36"
Door Height	up to 7'0"
Handing	Completely Reversible
Stile Type	Wide (Standard)
Minimum Stile Width	4-1/2"
Projections	3-1/4" active, 2-3/4" dogged
Latchbolt	Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching
Strikes	Top: 726
Fasteners	Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Door Applications	1-3/4" Metal, wood or composite doors
