7110xAU628Fx630

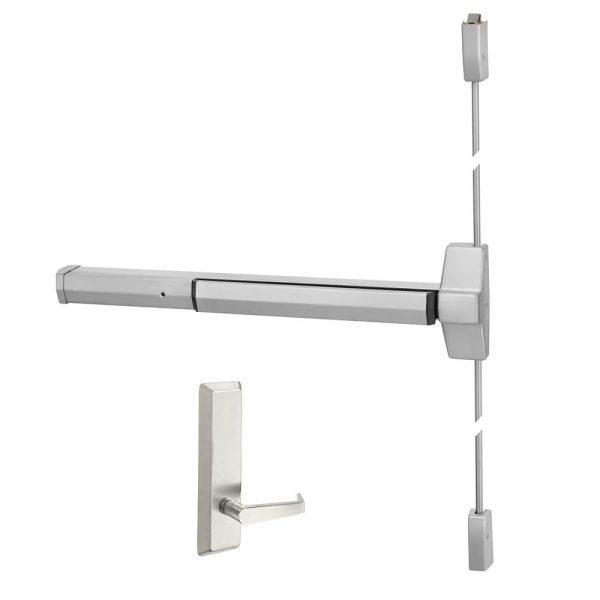

Accentra (Formerly Yale) 7110(F) x AU628F Surface Vertical Exit Device with Passage Lever Trim

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • ANSI Function 14 (Passage)
  • Includes AU-628F lever trim

Available Options:

Product Overview

Accentra (formerly Yale) 7110/7110F Surface Vertical Rod Exit Device, AU-626F Classroom/Storeroom Lever Trim

Accentra 7000 Series Exit Devices deliver an unparalleled combination of durability, innovation, and aesthetics. The simple, clean lines and variety of available finishes suit the modern decor of any commercial building. When the beauty of your facility matters almost as much as life safety.

  • ANSI Function 14 (Passage): Entrance by trim when latchbolt is released by lever. Lever always active, no cylinder.
  • Certified ANSI/BHMA A156.3, Grade 1
  • ISO 9001: Designed and manufactured under a certified ISO 9001 quality system

Features

  • Designed for wide stile and flush doors
  • Handed. Specify hand (field reversible)
  • Bottom deadbolt for secure latching
  • Fully adjustable roller strike

AU-628F Lever Trim

  • ANSI Function: 14
  • AU (Agusta) lever design
  • Trim through-bolts to exit device for strength
  • Field reversible – ships as RHR
  • Dimensions: 3″ x 10-1/4″ x 13/16″
  • Projection: 2-5/8″
Brand

Finishes

630 Satin Stainless Steel
Includes Trim

Yes
Trim

628F
Lever Design

AU (Augusta)
Fire Rating

7110 Non-rated – 7110F Fire-Rated up to 3 Hours
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1
Usage

Heavy Duty
Device Type

Surface Rod Device
Door Width Range

30" to 36"
Door Height

up to 7'0"
Stile Type

Wide (Standard)
Minimum Stile Width

4-1/2"
Projections

3-1/4" active, 2-3/4" dogged
Latchbolt

top: 3/4" pullman style with auto deadlatching; Bottom 5/8" deadbolt, held retracted during door swing
Strikes

Top: Roller type 791. Bottom: Flush mounted 790
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Door Applications

1-3/4" Metal, wood or composite doors
Buy American Act Compliance

Meets BAA – Buy American Act
