2170LBR-630

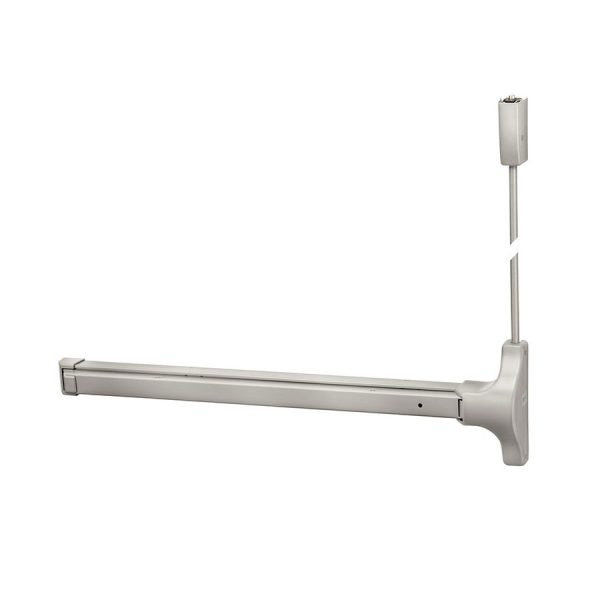

Accentra (Formerly Yale) 2170(F) LBR Surface Vertical Rod Exit Device (Less Bottom Rod)

Usually Ships: 20-30 Business Days
  • ANSI/BHMA Grade-1 Certified
  • Up to 7’0″ door height (extension top rod available)
  • Exit Only (outside trim sold separately)

Available Options:

Product Overview

Accentra (formerly Yale) 2100 Series Grade 1 Exit Device, Surface Vertical Rod, 2170(F) LBR, Less Bottom Rod

The 2170(F) is a surface vertical rod exit device to be used on wide stile and flush doors where one or two-point latching is desired.

  • Exit Only (Yale Exit Device Trim Sold Separately)
  • Non-handed for easy installation
  • Designed for wide stile doors
  • Positive action linkage on a deadlocking top Pullman bolt
  • Simultaneous direct pull bottom deadbolt
  • When unlatched, device keeps both bolts retracted until door is shut
  • Mechanisms made of heavily electroplated high-grade steel and non-ferrous materials provide sturdy construction and superior protection against corrosion

UL/cUL Listed:

  • 2170LBR: FVSR/FVSR7 – Panic hardware
  • 2170F90LBR: GXHX/GXHX7 – Fire exit hardware (F) (8′ x 10′ pairs, 1-1/2 hr.) (8′ x 8′ pairs, 3 hr.) – Heat-activated door bolt (Popper) – Used when bottom rod is omitted from fire exit devices (LBR).
Brand

Finishes

630 Satin Stainless Steel
Device Type

LBR (Less Bottom Rod) Surface Rod Device
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1
Usage

Medium Duty
Includes Trim

No
Stile Type

Wide (Standard)
Door Width Range

36" Device: 30" to 36" – 48" Device: 42" to 48"
Door Height

Up to 7'0" Standard (extension top rod for 8'0" doors optional)
Fire Rating

2170LBR: Non Fire-Rated – 2170F90LBR: 90-Minute Fire-Rated
Handing

Non Handed – Completely Reversible
Minimum Stile Width

4-1/2"
Projections

2-1/2" active, 1-3/4" dogged
Strike

Top: Roller type 791. Bottom: Flush mounted 790
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Door Applications

1-3/4" Metal, wood or composite doors
