2120-Concealed-Vertical-Rod-Exit-Device

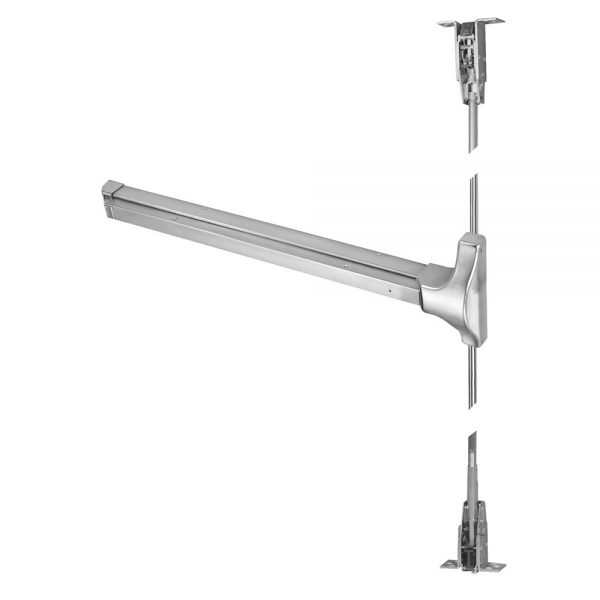

Accentra (Formerly Yale) 2120(F) Concealed Vertical Rod Exit Device

Usually Ships: 20-30 Business Days
  • ANSI/BHMA Grade-1 Certified
  • Up to 7’0″ door height (extension top rod available)
  • Exit Only (outside trim sold separately)

Available Options:

Product Overview

Accentra (formerly Yale) 2100 Series Grade 1 Exit Device, 2120 Concealed Vertical Rod

The 2120(F) is a concealed vertical rod exit device to be used on metal doors.

  • Exit Only (Yale Exit Device Trim Sold Separately)
  • Non-handed for easy installation
  • Designed for wide stile doors
  • Positive action linkage on a deadlocking top Pullman bolt
  • Simultaneous direct pull bottom deadbolt
  • When unlatched, device keeps both bolts retracted until door is shut

UL/cUL Listed:

  • FVSR/FVSR7 – Panic hardware
  • GXHX/GXHX7 – Fire exit hardware (F) (8′ x 8′ pairs, 3 hr.)
Brand

Finishes

630 Satin Stainless Steel, 689 Aluminum (Powder Coated)
Device Type

Concealed Rod Device
Vertical Rods

1/2" (13mm) O.D. telescoping tubular rods
Includes Trim

No
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1
Usage

Medium Duty
Stile Type

Wide (Standard)
Door Width Range

36" Device: 30" to 36" – 48" Device: 42" to 48"
Door Height

Up to 7'0" Standard (extension top rod for 8'0" doors optional)
Fire Rating

2120: Non-Rated – 2120F: 3 Hour Fire-Rated
Handing

Non Handed – Completely Reversible
Minimum Stile Width

4-1/2"
Projections

2-1/2" active, 1-3/4" dogged
Strike

Top: Roller type 791. Bottom: Flush mounted 790. 794 floor strike optional (threshold openings)
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Door Applications

1-3/4" Metal, wood or composite doors
