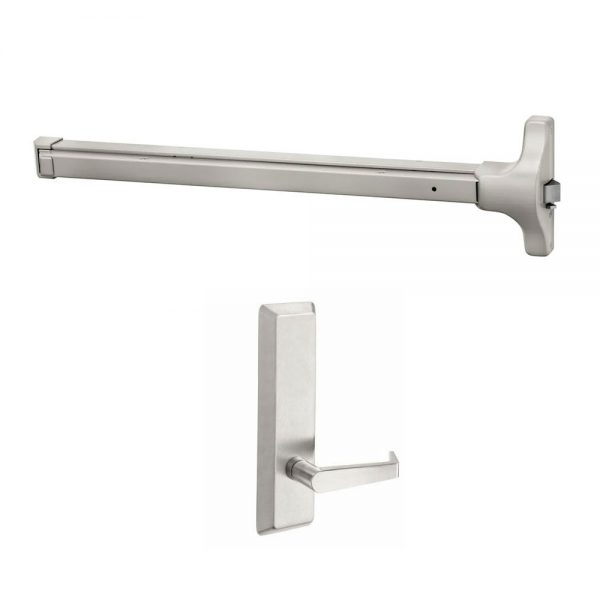

Accentra (Formerly Yale) 2100 x AU628F Panic Rim Exit Device with Passage Lever Trim

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Grade-1 Certified
  • ANSI Function 14 (Passage)
  • Includes AU-628F Lever Trim

Available Options:

Product Overview

Accentra (formerly Yale) 2100/2100F Economy Rim Exit Device, AU-628F Passage Lever Trim

Providing a higher standard of ANSI/BHMA Grade 1 performance, the 2100 Series Exit Device is the right choice for meeting the rigors of everyday use. The 2100 Series is a perfect fit for both back of house and prominent openings in office buildings, retail, and a long list of other facilities that require both performance and style.

  • ANSI Function 14 (Passage): Entrance by trim when latchbolt is released by lever. Lever always active, no cylinder.
  • Tough: Sturdy construction is ideal for meeting the rigors of demanding industry environments
  • Economical: Works for many building projects, regardless of budget
  • Strong & Durable: ANSI/BHMA Grade 1 Certification ensures long life and reliability

AU-628F Lever Trim

  • ANSI Function: 14
  • AU (Agusta) lever design
  • Trim through-bolts to exit device for strength
  • Field reversible – ships as RHR
  • Dimensions: 3″ x 10-1/4″ x 13/16″
  • Projection: 2-5/8″
Brand

Finishes

630 Stainless Steel Device w/ 626 Satin Chrome Lever
Length

36" (for 30" to 36" Doors), 48" (for 42" to 48" Doors)
Includes Trim

Yes
Lever Design

AU (Augusta)
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1
Usage

Medium Duty
Stile Type

Wide (Standard)
Fire Rating

2100: Non-Rated – 2100F: 3 Hour Fire-Rated
Handing

Non Handed – Completely Reversible
Minimum Stile Width

4-1/2"
Projections

2-1/2" active, 1-3/4" dogged
Latchbolt

3/4" deadlocking stainless steel pullman-type
Strike

757F, 793 optional (double door application, panic only)
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Door Applications

1-3/4" Metal, wood or composite doors
Warranty

3 Year
