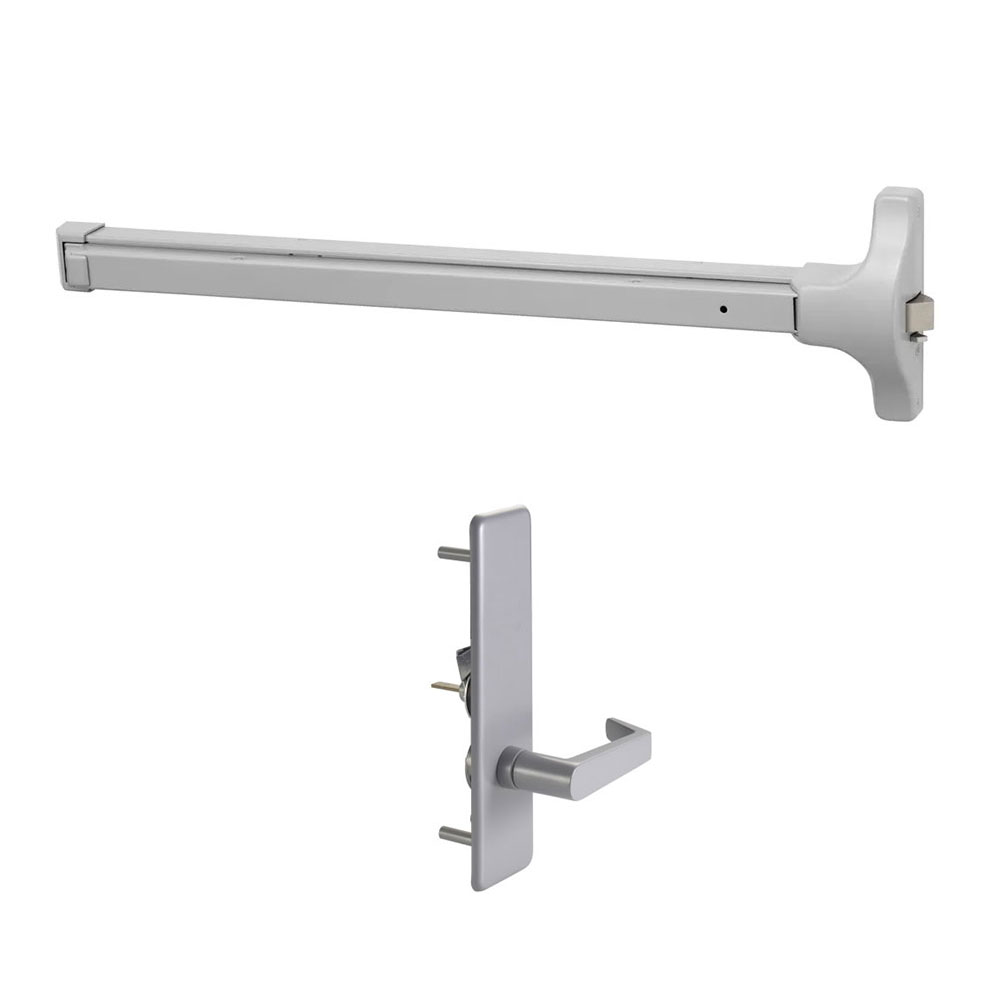

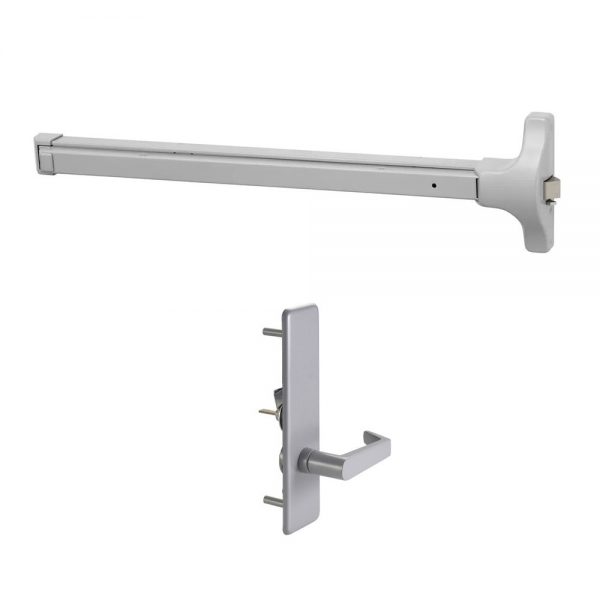

Accentra (Formerly Yale) 2100 x AU428F Panic Rim Exit Device with Passage Lever Trim

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Grade-1 Certified
  • ANSI Function 14 (Passage)
  • Includes AU-428F lever trim

Available Options:

Product Overview

Accentra (formerly Yale) 2100/2100F Economy Rim Exit Device, AU-428F Passage Lever Trim

Providing a higher standard of ANSI/BHMA Grade 1 performance, the 2100 Series Exit Device is the right choice for meeting the rigors of everyday use. The 2100 Series is a perfect fit for both back of house and prominent openings in office buildings, retail, and a long list of other facilities that require both performance and style.

  • ANSI Function 14 – Entrance by trim when latchbolt is released by lever. Lever always active, no cylinder.
  • Tough: Sturdy construction is ideal for meeting the rigors of demanding industry environments
  • Economical: Works for many building projects, regardless of budget
  • Strong & Durable: ANSI/BHMA Grade 1 Certification ensures long life and reliability

AU-428F Lever Trim

  • ANSI Function: 14
  • Entrance by trim when latchbolt is released by lever. Lever always active, no cylinder.
  • AU (Agusta) lever design
  • Field reversible – ships as RHR
  • Dimensions: 2-1/2″ x 9-1/2″ x 1/4″
Brand

Finishes

630 Satin Stainless Steel, 689 Aluminum (Powder Coated)
Length

36" (for 30" to 36" Doors), 48" (for 42" to 48" Doors)
Includes Trim

Yes
Lever Design

AU (Augusta)
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1
Usage

Medium Duty
Stile Type

Wide (Standard)
Fire Rating

2100: Non-Rated – 2100F: 3 Hour Fire-Rated
Handing

Non Handed – Completely Reversible
Minimum Stile Width

4-1/2"
Projections

2-1/2" active, 1-3/4" dogged
Latchbolt

3/4" deadlocking stainless steel pullman-type
Strike

757F, 793 optional (double door application, panic only)
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Door Applications

1-3/4" Metal, wood or composite doors
Warranty

3 Year
