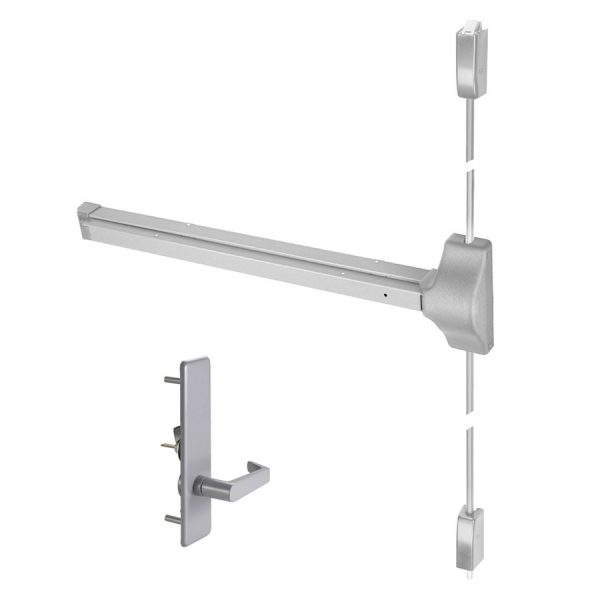

Accentra (Formerly Yale) 1810(F) x AU428F Surface Vertical Rod Exit Device with Passage Lever Trim

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Grade-1 Certified
  • ANSI Function 14 (passage)
  • Includes AU-428F lever trim

Available Options:

Product Overview

Accentra (formerly Yale) 1800 Series Grade 1 Flat Bar Exit Device, Surface Vertical Rod, 7ft Height, Includes AU428F Lever Trim

The 1810(F) is a surface vertical rod exit device to be used on metal, wood, or composite pairs of doors where two-point latching is desired.

  • ANSI Function 14 – Entrance by trim when latchbolt is released by lever. Lever always active, no cylinder.
  • Non-handed for easy installation
  • Designed for wide stile and flush doors
  • Positive action linkage on a deadlocking top Pullman bolt
  • Simultaneous direct pull bottom deadbolt
  • When unlatched, device keeps both bolts retracted until door is shut

UL/cUL Listed:

  • FVSR/FVSR7 – Panic hardware
  • GXHX/GXHX7 – Fire exit hardware (F) (up to 4′ x 8′ single, 8′ x 8′ pairs, 3 hr.)

AU-428F Lever Trim

  • ANSI Function: 14
  • Entrance by trim when latchbolt is released by lever. Lever always active, no cylinder.
  • AU (Agusta) lever design
  • Field reversible – ships as RHR
  • Dimensions: 2-1/2″ x 9-1/2″ x 1/4″
Brand

Finishes

689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated)
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1
Usage

Medium Duty
Device Type

Surface Rod Device
Includes Trim

Yes
Trim

428F
Lever Design

AU (Augusta)
Stile Type

Wide (Standard)
Door Height

Up to 7'0" Standard (extension top rod for 8'0" doors optional)
Fire Rating

1810: Non-Rated – 1810F: Fire-Rated up to 3 Hours
Handing

Non Handed – Completely Reversible
Minimum Stile Width

4-1/2"
Projections

2-1/2" active, 1-3/4" dogged
Strike

Top: Roller type 791. Bottom: Flush mounted 790
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Door Applications

1-3/4" Metal, wood or composite doors
Warranty

3 Year
