ABH A571HD Heavy Duty Full Surface Continuous Geared Hinge

Usually Ships: 3-5 Business Days

Available Options:

Finish
Length	Clear

Quantity:

ABH A571HD Aluminum Continuous Gear Hinges Full Surface

BHMA Grade 1
Full Surface, Heavy Duty
No Door Inset, Flush Mount
Bi-fold applications
48″ door width maximum
450 lbs. door weight maximum
Fasteners: 12-24 X 1″ Phillips Pan Head, Self Drilling, Thread Forming Tek Machine Screw 1/4-20 x 1-1/4″ x 3/8 Dia. Sex Bolts and 1/4-20 x 1-1/4″ PH. Head Shoulder Bolts for door
Standard Lengths: 79″, 83″, 85″, *95″
Approved for use on metal swinging type fire doors rated up to and including 90 minutes
Approved for use on wood swinging type fire doors rated up to and including 60 minutes

*Oversize handling fee applies (added at checkout)

Brand	ABH
Finish	Anodized Aluminum, Black, Dark Bronze
Length	79" (for 6'8" door), 83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door)
Material	Aluminum
ANSI/BHMA Standard	ANSI/BHMA A156.26-2017 Certified
Fire Rating	Approved for use on metal swinging type fire doors rated up to and including 90 minutes, Wood doors up to 60 minutes
Continuous Hinge Type	Full Surface
Usage	Heavy Duty
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA

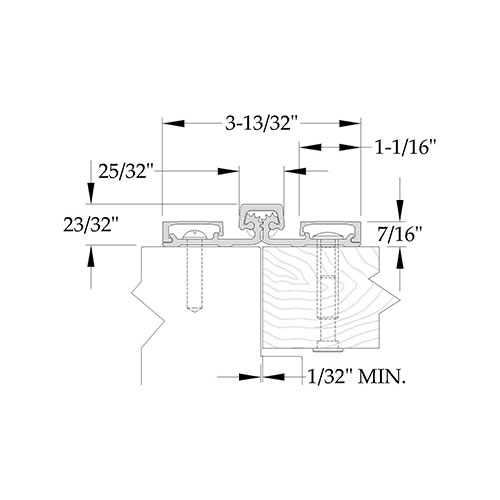

ABH A571 Cut Sheet
