Product Overview

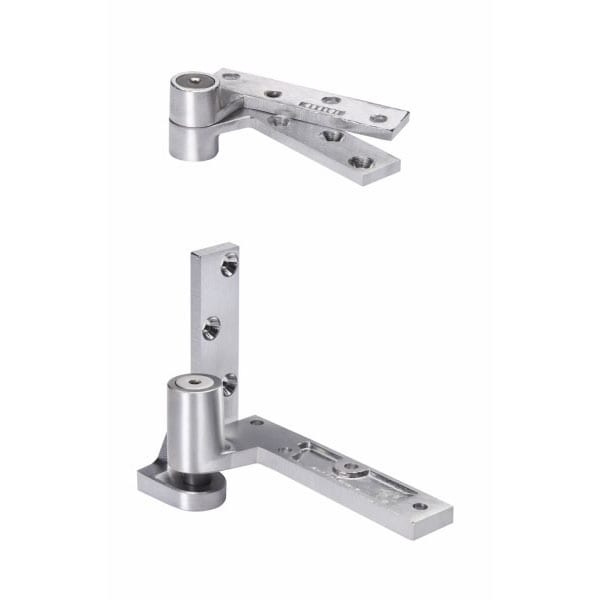

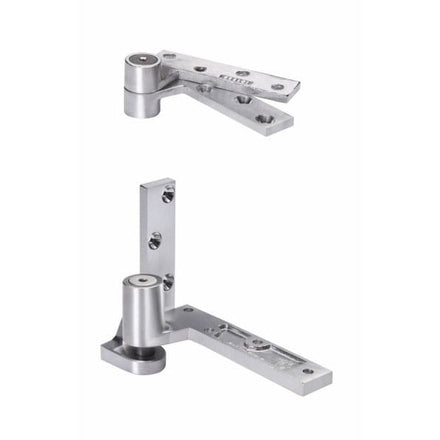

3/4" Offset Pivot Set - for Interior or Exterior Doors up to 450 lbs.
- 626 Satin Chrome Finish
- M19 Intermediate Pivot(s) sold separately
- Bottom pivot mortised into side jamb
- Pivot set can be vertically adjusted up to 3/16" after installation
- 3/4" offset (measured from center-line of pivot to face of door)
- Door edges must be beveled 1/8" in 2"
- Weight of door is borne by floor portion
- Doors will swing 180 degrees, trim permitting
- Furnished with wood and machine screws
- Doors up to 90" tall normally require the use of one intermediate pivot. Every additional 30" of door height warrants another intermediate pivot.
| Brand | |
|---|---|
| Finishes |
626 Satin Chrome, 613 Oil Rubbed Bronze |
| Hand |
LH (Left Hand), RH (Right Hand) |
| Door Weight |
up to 450 lbs. |
| Compliance |
ANSI C07131 |
| Usage |
Standard Duty |
| Pivot Type |
Offset Pivots |
