Product Overview

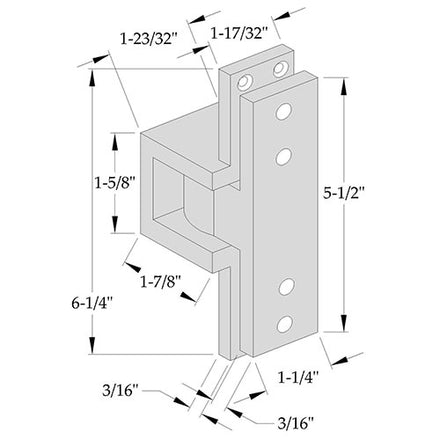

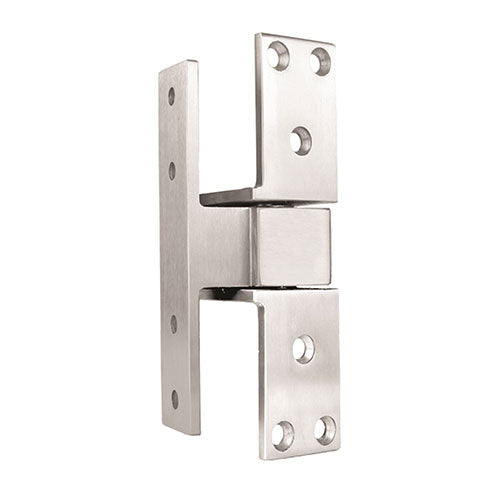

ABH 0519 Pocket Pivot
- Pivot point is located inside the frame
- Allows door to swing into a pocket in the frame at a right angle
- When the door is in the pocket, it is completely clear of the door opening and flush with adjacent wall
- Maximum door swing is 90°
- Minimum three pocket pivots per door 60" - 90" tall
- Add one pocket pivot for each additional 30" door height
- Maximum door load per pivot - 90 pounds
- Non-handed
- UL listed for use on 3-hour fire rated doors - Standard
- Heavy duty stainless steel needle bearings
- Stainless steel base material
- Average weight per unit = 2.5 lbs
| Brand | |
|---|---|
| Hand |
Non-handed |
| Compliance |
Meets or exceeds ANSI C07611 |
| Usage |
Heavy Duty |
| Pivot Type |
Pocket Pivots |
| Finishes |
US32D (630) Satin Stainless Steel |
