Product Overview

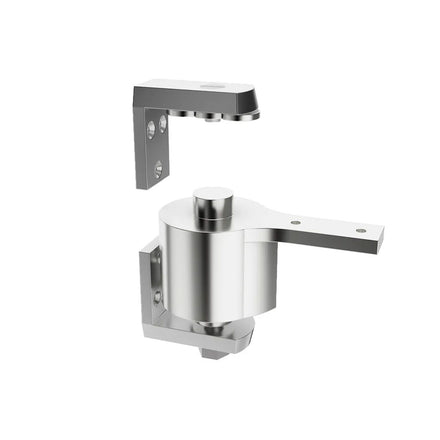

McKinney 4007 Double Acting Spring Pivot Hinge
The 4007 Double Acting Spring Pivot Hinge is an alternative solution to door closing devices and is recommended for swinging doors, half doors, restaurant kitchen doors, and courtroom doors.
Features
- Non-adjustable double-acting spring pivot hinge
- Allows door to self-return to center

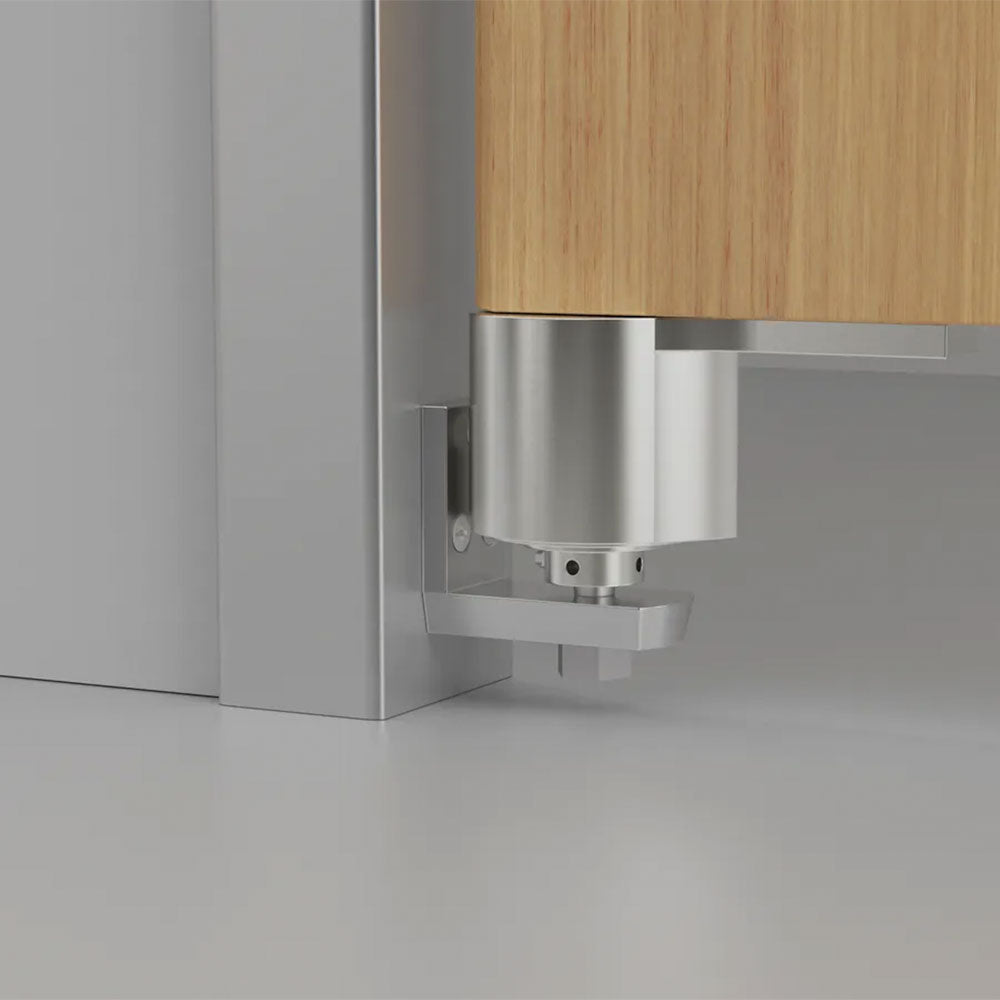

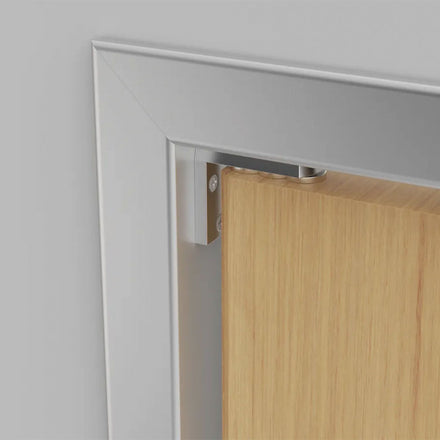

- Two parts, door top pivot and door bottom jamb bracket
- Flat jamb bracket fits jamb not less than 1-1/4" wide
- Anti-friction bearing
- Non-handed
- Provides reliability and strength to the door
- Ideal for traffic doors, courtroom doors, half doors in commercial applications
Benefits
- Alternative solutions to door closing devices
- Equally suited for both light and heavy-duty gates
Specifications
- Minimum Door Thickness: 1"
- Maximum Door Thickness:2 1/2"
- Maximum Door Weight: 75lbs.
- Maximum Door Width: 36"
| Brand | |
|---|---|
| Finishes |
US2C/604 Clear Zinc |
